6% OFF

1.5KW COMPLETE INVERTER SYSTEM - Image 2

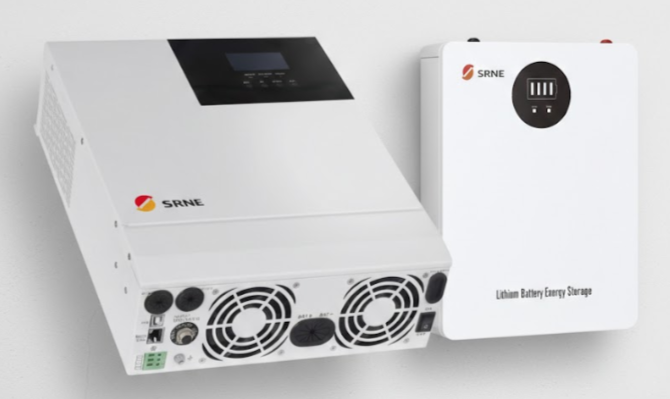

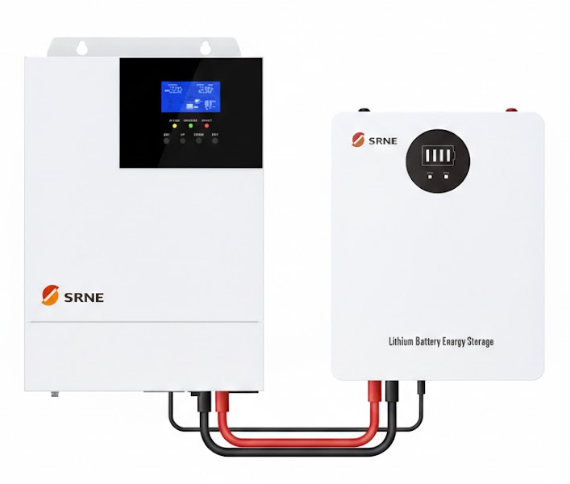

1.5KW COMPLETE INVERTER SYSTEM

Name: 1.5KW COMPLETE INVERTER SYSTEM
SKU: 5152
Availability: InStock

Original price was: UGX4,200,000.00.Current price is: UGX3,930,000.00.

A 1.5kW system is designed for low-to-medium consumption. It is not meant for heavy heating appliances like electric kettles, irons, or water heaters.

Here is a breakdown of what typically comes in this package and what it can actually d0.

Device Type	Example Load	Estimated Run Time (on 200Ah battery)
Lighting	10 LED Bulbs (10W each)	10 Hours
Entertainment	42″ LED TV + Decoder	6 Hours
Computing	2 Laptops	4Hours
Appliances	Small Energy-Efficient Fridge	5 Hours
Cooling	2 Standing Fans	6 Hours

📄 Technical Specifications:

1.5kW Hybrid Inverter

1. Output (AC)

Feature	Specification
Rated Power	1,500W (1.5kW)
Surge / Peak Power	3,000W (usually for 2–5 seconds)
Output Voltage	230V AC (±5%)
Frequency	50Hz / 60Hz (Auto-sensing)
Waveform	Pure Sine Wave (Safe for electronics)
Transfer Time	10ms (for Computers) / 20ms (Appliances)
Peak Efficiency	90% – 93%

📄 Technical Datasheet:

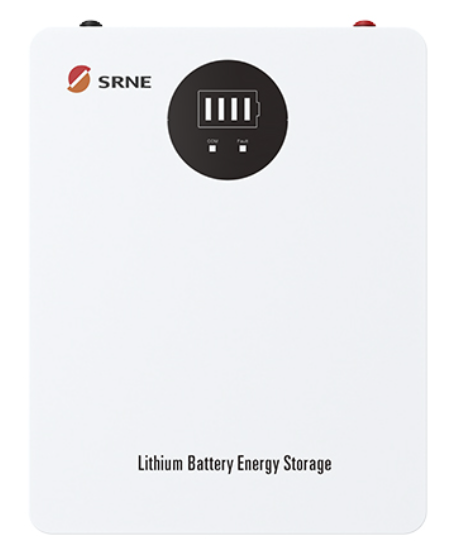

2.56kWh LiFePO4 Hybrid Battery

1. Electrical Specifications

Feature	Specification
Nominal Energy	2.56 kWh (2560 Wh)
Nominal Voltage	25.6V
Nominal Capacity	100 Ah
Standard Charge Current	50A (Recommended)
Max Continuous Charge Current	100A
Max Continuous Discharge	100A
Peak Discharge (3–5 sec)	150A – 200A
Voltage Window	20.0V – 29.2V

2. Lifespan & Performance

Feature	Specification
Cycle Life	>6,000 Cycles (@ 80% Depth of Discharge)
Design Life	10+ Years
Depth of Discharge (DoD)	90% – 95% (Safe usable energy)
Self-Discharge	< 3% per month
BMS Protections	Overcharge, Over-discharge, Over-current, Short-circuit, Temperature

Category: Solar

Description
Reviews (0)

Description

A 1.5kW (1500 Watt) Complete Inverter System is a compact, entry-level power solution that comes with a 2.56kwh lithium battery storage designed for small homes, apartments, or offices. It is ideal for users looking to maintain “essential” power during outages or to transition small loads to solar.

Without solar panels, the system relies entirely on the grid to charge. If you have very long blackouts (e.g., 20 hours a day), the battery may not have enough time to charge fully between outages. In such cases, adding even 2 solar panels later is highly recommended.

Reviews

There are no reviews yet.

Be the first to review “1.5KW COMPLETE INVERTER SYSTEM”

Related products

1% OFF

A 5KW COMPLETE SOLAR SYSTEM

The SRNE 5KW Smart Solar System is a premium, all-in-one energy solution designed for complete power independence and high-performance reliability. By pairing a heavy-duty 5,000W Hybrid Inverter with a massive 5.12kWh Lithium (LiFePO4) storage unit, this system effortlessly powers high-surge appliances like air conditioners, pumping machines, and complete home offices.

📱 Smart Monitoring & Control

Wi-Fi Data Logger (SR-MS-W-09): A plug-and-play accessory that connects your system to the cloud for 24/7 remote oversight.⁴

The included SRNE Wi-Fi Data Logger transforms your system into a smart home asset.⁵ Once connected to your local Wi-Fi, you can use the Smartness or SRNE Monitoring app on your mobile phone to:

Track Power Harvest: See exactly how much “free” energy your 615W panels are generating in real-time.
Monitor Consumption: View your home’s energy usage and battery discharge rates to optimize your savings.
Historical Data: Analyze daily, monthly, and yearly yield charts to see your long-term ROI.
Remote Alerts: Receive instant notifications on your phone if the system detects a fault or low battery.

⚡ Performance Capability

Appliance Type	Example Load	Status
Cooling	1.5HP Inverter Air Conditioner	✅ Runs easily on solar
Pumping	1HP Submersible Water Pump	✅ Fully supported
Kitchen	Microwave, Kettle, Fridge, Freezer	✅ Runs simultaneously
Entertainment	3 Smart TVs, Gaming Consoles, Sound System	✅ 24/7 Support
Work	10+ Laptops, Printers, Wi-Fi Routers	✅ Full office support

⏳ Daily Energy Generation

In standard sunny conditions, the 615W panel array will generate approximately 22kWh – 28kWh per day. This is enough to fully charge your battery and power a large 4-bedroom home during

Below are the technical datasheets for the premium SRNE 5KW Smart Solar Package. This data is designed for your website to provide customers with the exact engineering specifications of the system.

1. SRNE 5KW Hybrid Inverter (HYP4850S100-H)

The high-performance “brain” of the system that manages solar, battery, and grid power.

Parameter	Technical Specification
Rated Output Power	5,000W (5.0kW)
Surge / Peak Power	10,000VA (Starts high-torque motors easily)
Nominal Battery Voltage	48V DC
Output Waveform	Pure Sine Wave (Safe for all electronics)
Transfer Time	10ms (UPS speed – no PC restarts)
Max. PV Array Power	5,500W
MPPT Voltage Range	120V – 450V DC
Max. PV Open Circuit Voltage	500V DC
Max. Charging Current	100A (Solar) / 60A (Grid)
Parallel Capability	Up to 6 units (Expandable to 30kW)

2. SRNE 5.12kWh Lithium Battery (EOC05B)

The core energy storage using safe, long-lasting LiFePO4 chemistry.

Parameter	Technical Specification
Nominal Energy	5.12kWh (5,120Wh)
Nominal Capacity	100Ah
Nominal Voltage	51.2V
Cycle Life	6,000 Cycles @ 80% DoD
Design Life	15–20 Years
Max. Charge/Discharge	100A Continuous
Communication Interface	RS485 / CAN / USB (BMS Integrated)
Safety Certifications	UN38.3, MSDS, IEC 62619
Mounting Options	Wall-mount / Floor-stack / Rack-mount

3. 615W Ultra-High Efficiency Solar Panels

Premium high-wattage modules for maximum generation in small spaces.

Parameter	Technical Specification
Max Power (Pmax)	615W
Module Efficiency	Up to 22.7% – 23.2%
Cell Type	N-Type / Mono-crystalline Bifacial
Open Circuit Voltage (Voc)	~53.0V
Short Circuit Current (Isc)	~14.6A
Operating Temperature	-40°C to +85°C
Durability	5400Pa (Front load) / 2400Pa (Back load)
Warranty	12–15 Year Product / 30 Year Power Output

4. SRNE Smart Wi-Fi Data Logger (MS-W-09)

The monitoring bridge that connects your system to your phone.

Parameter	Technical Specification
Communication Interface	RS-485 (Plug & Play)
Wireless Standard	802.11 b/g/n (2.4GHz)
Data Interval	5 Minutes (Adjustable)
Mobile App	Smartness / SRNE Monitor (iOS & Android)
Protection Rating	IP65 (Weatherproof)
Features	Remote Debugging, Fault Alerts, Power Yield Charts

Add to cart

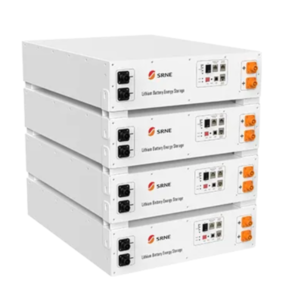

RACK MOUNT LIFEPO4( 51.2V/100AH 5.12KWH
5.12kWh Rack-Mount LiFePO4 Battery (51.2V 100Ah)

The SRNE 5.12kWh Rack-Mount is a professional-grade power storage module designed for high-efficiency 48V solar systems. Built into a standard 3U server-rack chassis, this 100Ah Lithium Iron Phosphate (LiFePO4) battery provides a compact, high-capacity solution for residential backup and commercial energy security.

Technical Profile

Total Energy: 5.12kWh (51.2V / 100Ah)

Battery Type: Premium LiFePO4 (Lithium Iron Phosphate)

Service Life: >6,000 Cycles (10+ year design life)

Max Discharge: 100A (Supports loads up to 5,000W)

Scalability: Parallel up to 16 units (81.92kWh total)

What It Can Run (Estimated)

Full Home Office: (2 Desktop PCs, 4 Monitors, Router, Lights) – Up to 11 Hours

Critical Backup: (Inverter Fridge, LED Lights, Wi-Fi) – Up to 30 Hours

Climate Control: (9,000 BTU Inverter Air Conditioner) – Up to 5.7 Hours

Entertainment: (65″ Smart TV, Soundbar, Gaming Console) – Up to 23 Hours

Top 4 Reasons to Choose This Model

Professional Organization: Designed to fit standard 19-inch racks, keeping your power room clean, secure, and well-ventilated.

Smart Monitoring: Features integrated RS485/CAN communication ports that sync directly with your inverter for 100% accurate battery data.

Advanced Safety: The built-in Smart BMS (Battery Management System) automatically protects against over-voltage, overheating, and short circuits.

High-Efficiency Power: The 51.2V architecture reduces heat and energy loss during high-power use compared to 12V or 24V systems.
UGX3,869,000.00
Add to cart

WALL MOUNT LIFEPO4 16.07KWH BATTERY (51.2V/314AH)

SRNE 16.07kWh Ultra-High Density Wall-Mount LiFePO4 (51.2V 314Ah)

The SR-LFP51.2-314-W is an industrial-grade energy storage solution featuring high-density 314Ah Grade-A Prismatic cells. This single module delivers a massive 16.07kWh of nominal energy, specifically engineered to support high-power 8kW to 12kW hybrid inverters in large-scale residential and commercial applications.

Detailed Technical Specifications

Parameter	Specification	Technical Significance
Model	SE16B-PRO	High-Capacity 314Ah Series
Nominal Energy	16.07kWh (16,076Wh)	Equivalent to 3x standard 5kWh units
Nominal Voltage	51.2V	Optimized for 48V/51V Power Electronics
Rated Capacity	314Ah	Ultra-high energy density footprint
Max. Charging Voltage	58.4V	Full charge threshold for LiFePO4
Max. Cont. Discharge	200A (10,240W)	Supports massive simultaneous loads
Inbuilt Protection	240A Circuit Breaker	Hardware safety & manual isolation
Max Parallel Capacity	16 Units (257.12kWh)	Massive scalability for large estates
Cycle Life	>6,000 Cycles	15–20 year design life (@ 80% DOD)
Warranty	5 Years	Guaranteed performance and reliability
Communication	CAN / RS485 / RS232	Multi-protocol Inverter Integration

Load Capability & Runtime Analysis

Calculated at 90% Depth of Discharge (approx. 14.4kWh usable energy).

Application Profile	Avg. Load	Estimated Runtime
Large Estate Essentials	800W	~18 Hours
Commercial Office	1,500W	~9.6 Hours
Heavy Climate Control	2,200W	~6.5 Hours
High-Power Workshop	4,500W	~3.2 Hours

Advanced Engineering Features

5-Year Performance Warranty: Backed by a comprehensive 5-year warranty, ensuring long-term peace of mind and protection for your energy investment.
Optimized Charging Profile: With a maximum charging voltage of 58.4V, the battery is compatible with high-voltage charging algorithms, ensuring every cell reaches full saturation for maximum runtime.
Integrated 240A Circuit Breaker: Features a dedicated high-current DC breaker for hardware-level overcurrent protection and easy manual isolation during maintenance or installation.
Massive Scalability (16 Units): Supports parallel connection of up to 16 modules, enabling a staggering total system capacity of 257.12kWh for industrial-scale storage.
Industrial 200A Smart BMS: The high-performance BMS allows for a continuous 10.2kW power draw, ensuring compatibility with high-capacity hybrid inverters without nuisance tripping.
Dual-Monitoring System: Equipped with an integrated LCD Digital Display for local status checks and built-in WiFi & Bluetooth for remote cloud monitoring via the SRNE App.

UGX10,421,000.00

Add to cart

10KW/48V SINGLE PHASE,THREE PHASE INVERTER (PARALLEL)
SRNE 10kW 48V Hybrid Solar Inverter (ASP48100S200-H)

The SRNE 10kW 48V is a high-performance hybrid power hub designed for large residential estates and commercial operations. Delivering 10,000W of continuous power and a massive 20,000VA surge, it is engineered to handle heavy industrial loads, high-torque motors, and sensitive IT infrastructure with ease.

Key Features and Benefits

10KW Continuous Power Output

Delivers 20KVA peak output for powering multiple appliances, equipment, and large household systems.

Supports 6HP motor loads, ideal for water pumps, fridges, and compressors.

Advanced 200A MPPT Charging with Dual Inputs

Two independent MPPT inputs, each accepting up to 5.5KW solar power.

Open circuit voltage up to 500Vdc per input, allowing for more solar panel flexibility.

MPPT efficiency at 99.9%, delivering maximum energy harvesting from your solar array.

Powerful Hybrid Charging

Accepts solar + grid/generator input simultaneously for hybrid charging.

200A max hybrid charging current charges batteries faster and more efficiently.

Works with 48V battery systems, including Li-ion, Lead-Acid, and user-defined types.

Battery-Free Operation and Fast Switching

Can power loads without batteries (UPS mode).

10ms automatic switch between power sources ensures uninterrupted electricity.

Parallel Scalability

Connect up to 6 inverters in parallel, forming up to 60KW total system capacity.

Supports three-phase output when three or more units are connected.

Protection and Control

Built-in protections: over-voltage, under-voltage, overload, reverse current, and over-temperature.

Communication via RS485, CAN, USB, and optional Wi-Fi/GPRS for remote monitoring.

Industrial-grade enclosure with IP20 indoor protection, quiet fan cooling, and compact design.

Ideal Applications

Large residential solar systems

Commercial and office backup setups

Solar water pumping and farm installations

Remote or off-grid areas needing scalable energy solutions

Businesses seeking uninterrupted power with generator integration

Technical Summary

Model: ASP48100S200-H

Output Power: 10,000W (20,000VA max)

Battery Voltage: 48V

Hybrid Charging Current: 200A

MPPT Inputs: Dual 5.5KW (500Vdc per string)

MPPT Voltage Range: 125–425V

Efficiency: 92% (99.9% MPPT tracking)

Switch Time: 10ms

Protection Rating: IP20

Warranty: 2 Years
UGX4,680,000.00
Add to cart
