Description

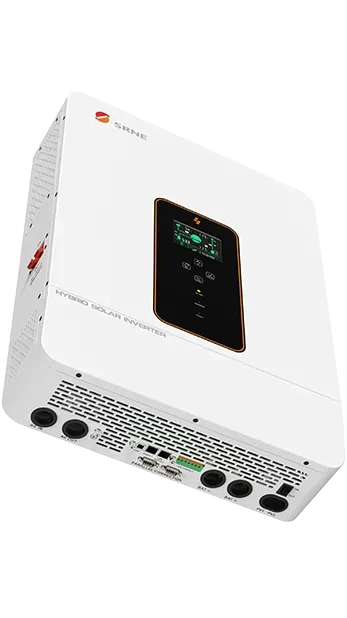

SRNE 10kW 48V Hybrid Solar Inverter (ASP48100S200-H )
High-Capacity Energy Hub: Scalable Single & Three-Phase Architecture

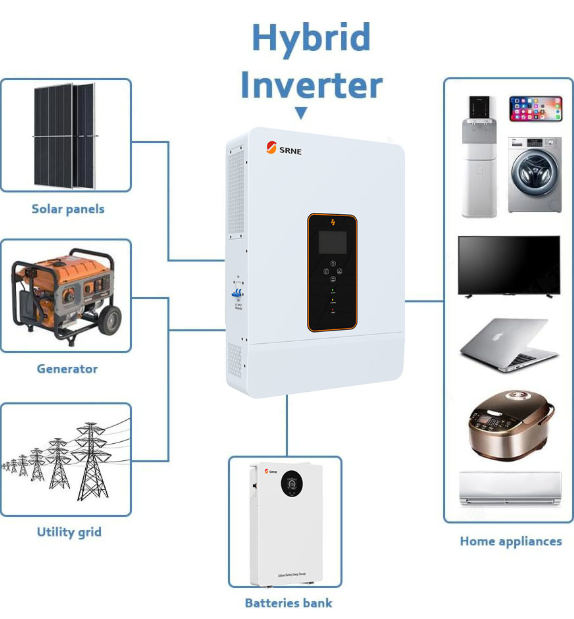

The SRNE 10kW 48V is an industrial-grade “All-in-One” hybrid power system designed for high-demand residential estates and commercial-scale energy storage. Built on a professional 48V DC platform, this unit delivers a massive 10,000W of continuous Pure Sine Wave power, making it one of the most robust single-unit solutions for high-load environments.
Engineered for ultimate flexibility, it features Dual-MPPT tracking and advanced Parallel Logic, allowing you to synchronize up to 6 units. This enables the creation of massive 60kW Single-Phase systems or professional 415V Three-Phase industrial grids, all backed by a 2-year comprehensive warranty.
Advanced Engineering Highlights
-
Massive 10kW Single-Unit Output: Provides 10,000W continuous AC power, capable of running high-surge inductive loads and multiple appliances simultaneously.
-
Dual-MPPT Efficiency: Features two independent MPPT trackers () with a combined 11,000W Solar Capacity. This allows for complex roof orientations while maintaining a peak tracking efficiency of 99.9%.
-
Elite Parallel Scalability: Support for up to 6 units in parallel enables seamless expansion:
-
Single-Phase: Scale up to 60kW for massive residential compounds.
-
Three-Phase: Configure for true 400V/415V Industrial Three-Phase power.
-
-
20,000VA Peak Surge: A 2:1 surge ratio provides the torque necessary to start 6HP motors and large-scale industrial equipment without system interruption.
-
Smart Time-Slot Management: Program specific hours for grid charging to leverage “Off-Peak” electricity rates, significantly lowering your operational costs.
-
UPS-Grade Seamless Switching: A lightning-fast 10ms transfer time ensures that sensitive IT equipment and servers remain online during power transitions.
Technical Specifications
Key Applications: What It Can Run
The 10kW 48V is a heavy-duty solution for demanding electrical footprints:
-
Industrial & Agricultural: 6HP Motors, large borehole pumps, and workshop machinery.
-
Commercial & IT: Full server rooms, medical clinics, and centralized HVAC systems.
-
Luxury Residential: Multiple 32,000 BTU Air Conditioners, EV fast-chargers, and heated pools.
-
Whole-Building Backup: Simultaneously manages induction cooktops, dual electric ovens, and high-load geysers.
2. Advanced Parallel & Three-Phase Logic
This unit is equipped with a high-speed CAN-bus communication port, allowing it to synchronize with up to 6 units to act as a single, unified power plant:
Single-Phase Scalability: Parallel up to 6 units for a monumental 60kW capacity.
Three-Phase Configuration: Create a true 400V/415V Industrial Three-Phase grid by assigning units to Phase A, B, and C. This is essential for running industrial 3-phase motors and large-scale commercial HVAC systems.
Intelligent Load Balancing: When paralleled, the units communicate at microsecond intervals to ensure current sharing is perfectly balanced, preventing any single unit from over-stressing.
3. Smart Energy Management (Firmware Features)
-
Time-of-Use (TOU) Logic: Program the inverter to avoid expensive “Peak” tariff electricity and instead fast-charge the batteries during “Off-Peak” hours, drastically reducing monthly utility bills.
-
UPS-Grade Switching: A lightning-fast 10ms transfer time ensures that sensitive servers, medical equipment, and telecommunications remain online without interruption during a grid failure.
-
Lithium BMS “Dual Activation”: Specifically designed for LiFePO4 batteries. It can “wake up” a battery that has shut down due to low voltage by applying a controlled current from either the PV array or the AC grid.
4. Industrial Safety & Protection Protocols
-
Comprehensive Hardware Safety:
-
PV Input: Current limiting, over-voltage, and night reverse current protection.
-
Battery: Over-voltage, under-voltage, and over-current protection.
-
AC Side: Output short-circuit, over-load ($>110\%$), and heat sink over-temperature protection.
-
Thermal Management: Quad-fan intelligent cooling system with variable-speed logic, maintaining stable operation in ambient temperatures up to 55°C.
-
Clean Power Quality: Delivers grid-quality electricity, making it safe for delicate medical diagnostics, high-end server racks, and telecommunications gear.
Connectivity & Remote Monitoring
-
Standard Ports: RS485, CAN, USB, and Dry Contacts for automated generator start/stop.
-
Mobile App Integration: Compatible with optional Wi-Fi / GPRS modules for real-time telemetry. Clients can track solar production, battery health, and household consumption from anywhere in the world.
