• 0% OFF


  A 5KW COMPLETE INVERTER SYSTEM

  📦 Package Components

  • 5KW (5000W) Hybrid Inverter (48V): A professional-grade 48V system. The higher voltage makes the system more efficient, cooler, and safer under heavy loads. It features a 10ms UPS-speed switchover.

  • 5.12kWh Lithium (LiFePO4) Battery: A large 100Ah / 51.2V module. This “energy tank” is double the size of the 3kW package, offering significantly longer runtimes and a 10–15 year lifespan (6,000+ cycles).

  • Solar Ready: Built-in high-capacity MPPT controller. You can easily add up to 5,500W of solar panels later to become fully energy-independent.

    ⚡ Power Capability

    A 5KW system provides enough “muscle” to run almost an entire household simultaneously.

    Daily Essentials	Heavy Appliances	Specialist Loads
    40+ LED Bulbs	1.0HP or 1.5HP Inverter AC	Microwave & Toaster
    4–6 Ceiling Fans	Washing Machine (Full cycle)	Electric Kettle (2,000W)
    3 Smart TVs & Gaming Console	Large Double-Door Refrigerator	Submersible Water Pump
    5+ Laptops & Office Printers	Deep Freezer	Electric Iron

    ---

    ⏳ Backup Runtime (Estimated)

    Since this system relies on grid-charging (no panels), your backup time depends on your usage:

    • Light Load (300W): (Lights, Fans, WiFi, TV, Laptops) → ~14–16 Hours

    • Medium Load (1,000W): (All above + Fridge + Washing Machine) → ~4–5 Hours

    • Heavy Load (2,500W): (All above + AC or Microwave) → ~1.5–2 Hours

      Below is the Technical Datasheet for the 5KW BLISON Complete Backup System. This professional-grade 48V system is designed for high-efficiency energy management and long-term reliability.

      ---

      1. 5KW Hybrid Inverter (48V / 5000W)

      The core controller that manages power between the grid and the battery.

      Parameter	Specification
      Rated Output Power	5,000W (5.0kW)
      Surge / Peak Power	10,000VA (5 Seconds)
      Output Waveform	Pure Sine Wave
      Nominal Battery Voltage	48V DC
      Inverter Efficiency	Up to 93%
      Transfer Time	10ms (UPS Speed)
      Max Grid Charging Current	60A / 80A (Configurable)
      Load Motor Capacity	4HP (Suitable for ACs & Pumps)
      Parallel Capability	Up to 6 Units (Optional)

      ---

      2. 5.12kWh Lithium Battery (LiFePO4)

      Massive energy storage using high-density 48V architecture.

      Parameter	Specification
      Nominal Energy	5.12kWh (5,120Wh)
      Nominal Voltage	51.2V
      Nominal Capacity	100Ah
      Cycle Life	6,000+ Cycles @ 80% DoD
      Design Life	15 Years
      Max Continuous Discharge	100A (5,000W)
      Max Continuous Charge	100A
      Standard Depth of Discharge	90% – 95%
      Communication Ports	RS485 / CAN / USB (Smart BMS)

      ---

      3. Operational & Environmental

      Parameter	Specification
      Cooling Method	Intelligent Variable Speed Fans
      Operating Temperature	-10°C to 55°C
      Protection Rating	IP20 (Indoor Installation Only)
      Mounting	Wall-Mount or Floor Standing
      Certifications	CE, IEC 62109, UN38.3, MSDS
      System Warranty	2 Years (Inverter) / 5–10 Years (Battery)

      ---

      ⚡ Solar Expansion Potential

      Even though this is a backup system (without panels), it is “Solar Ready.” If you decide to add panels later, the technical limits are:

      • Max Solar Input: 5,500W

      • MPPT Voltage Range: 120V – 450V DC

      • Max PV Open Circuit Voltage: 500

  UGX7,240,000.00 Original price was: UGX7,240,000.00.UGX7,199,000.00Current price is: UGX7,199,000.00.

  Add to wishlist

  Quick view

  Add to cart
•

  10KW/48V SINGLE PHASE,THREE PHASE INVERTER (PARALLEL)

  SRNE 10kW 48V Hybrid Solar Inverter (ASP48100S200-H)

  The SRNE 10kW 48V is a high-performance hybrid power hub designed for large residential estates and commercial operations. Delivering 10,000W of continuous power and a massive 20,000VA surge, it is engineered to handle heavy industrial loads, high-torque motors, and sensitive IT infrastructure with ease.

  Key Features and Benefits

  10KW Continuous Power Output

  • Delivers 20KVA peak output for powering multiple appliances, equipment, and large household systems.
  • Supports 6HP motor loads, ideal for water pumps, fridges, and compressors.

  Advanced 200A MPPT Charging with Dual Inputs

  • Two independent MPPT inputs, each accepting up to 5.5KW solar power.
  • Open circuit voltage up to 500Vdc per input, allowing for more solar panel flexibility.
  • MPPT efficiency at 99.9%, delivering maximum energy harvesting from your solar array.

  Powerful Hybrid Charging

  • Accepts solar + grid/generator input simultaneously for hybrid charging.
  • 200A max hybrid charging current charges batteries faster and more efficiently.
  • Works with 48V battery systems, including Li-ion, Lead-Acid, and user-defined types.

  Battery-Free Operation and Fast Switching

  • Can power loads without batteries (UPS mode).
  • 10ms automatic switch between power sources ensures uninterrupted electricity.

  Parallel Scalability

  • Connect up to 6 inverters in parallel, forming up to 60KW total system capacity.
  • Supports three-phase output when three or more units are connected.

  Protection and Control

  • Built-in protections: over-voltage, under-voltage, overload, reverse current, and over-temperature.
  • Communication via RS485, CAN, USB, and optional Wi-Fi/GPRS for remote monitoring.
  • Industrial-grade enclosure with IP20 indoor protection, quiet fan cooling, and compact design.

  ---

  Ideal Applications

  • Large residential solar systems
  • Commercial and office backup setups
  • Solar water pumping and farm installations
  • Remote or off-grid areas needing scalable energy solutions
  • Businesses seeking uninterrupted power with generator integration

  ---

  Technical Summary

  • Model: ASP48100S200-H
  • Output Power: 10,000W (20,000VA max)
  • Battery Voltage: 48V
  • Hybrid Charging Current: 200A
  • MPPT Inputs: Dual 5.5KW (500Vdc per string)
  • MPPT Voltage Range: 125–425V
  • Efficiency: 92% (99.9% MPPT tracking)
  • Switch Time: 10ms
  • Protection Rating: IP20
  • Warranty: 2 Years

  UGX4,680,000.00

  Add to wishlist

  Quick view

  Add to cart
•

  BATTERY PACK (EXPAND CAPACITY VIA PARALLEL CONNECTION OF 51.2 100AH,5.12KWH BATTERY)

   5.12kWh Battery Pack

  The  5.12kWh Battery pack is a high-performance, deep-cycle storage solution built for modern solar systems. Engineered with premium Lithium Iron Phosphate (LiFePO4) technology, this 51.2V 100Ah unit provides safe, efficient, and maintenance-free energy storage that can be easily expanded as your power needs grow. Supports up to 4 battery packs in parallel with battery warranty of 5 years.

  +1

  ---

  Key Specifications

  • Capacity: 5.12kWh (51.2V / 100Ah)

  • Chemistry: Lithium Iron Phosphate (LiFePO4)

  • Cycle Life: >6,000 Cycles @ 80% DOD

  • Scalability: Supports seamless parallel connection (typically up to 16 units) to expand total storage capacity.

  • Compatibility: Optimized for high-voltage 48V/51V hybrid inverters.

  ---

  Why It Stands Out

  • Future-Proof: Start with one module and simply add more in parallel to increase your backup time.

  • Intelligent Protection: Built-in smart BMS monitors and balances cells to prevent overcharging or overheating.

  • High Efficiency: Delivers stable, high-current power with a 95% round-trip efficiency rate.

  • Flexible Mounting: Space-saving design suitable for wall-mounted or floor-standing installations.

  ---

  Expansion Capabilities (Parallel Connection)

  By connecting multiple units, you can scale your energy storage to handle larger loads or longer backup durations:

  Number of Units	Total Capacity	System Voltage	Best Use Case
  1 Unit	5.12kWh	51.2V	Essential backup (Lights, Fridge, TV)
  2 Units	10.24kWh	51.2V	Medium home/office (AC, Small Pump)
  4 Units	20.48kWh	51.2V	Large residential (Full off-grid potential)
  8 Units	40.96kWh	51.2V	Commercial / Industrial backup

  UGX6,521,000.00

  Add to wishlist

  Quick view

  Add to cart
•

  ALL IN ONE SYSTEM( 51.2V/5KW INVERTER & 5.12KWH BATTERY)

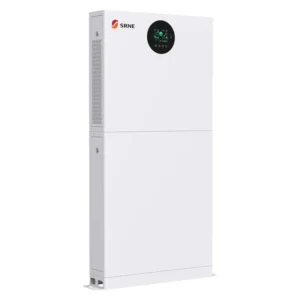

  SRNE EOTO5S All-in-One Solar Storage System

  The SRNE EOTO5S is a high-capacity, integrated energy solution designed for total home or office backup. This powerful “all-in-one” unit features a professional 5kW Pure Sine Wave Inverter and a massive 5.12kWh Lithium (LiFePO4) Battery, delivering reliable, high-voltage performance in a sleek, space-saving cabinet.  The inverter has a 3 years warranty & the battery 5 years.

  ---

  Key Specifications

  • Model: EOTO5S

  • Inverter Power: 5kW (5000W) Continuous Output

  • Battery Capacity: 5.12kWh (51.2V / 100Ah)

  • Battery Type: Premium Lithium Iron Phosphate (LiFePO4)

  • Surge Power: 10,000W (for heavy motor starts)

  ---

  Why It Stands Out

  • High Performance: Effortlessly powers heavy-duty appliances like air conditioners, pumps, and kitchen machinery.

  • Maximum Efficiency: The 51.2V architecture ensures faster charging and more stable power delivery.

  • Elegant Integration: Eliminates complex wiring by housing the inverter and battery in a single, modern unit.

  • Solar Ready: Built-in high-efficiency MPPT controller for optimized solar energy harvesting.

  UGX6,521,000.00

  Add to wishlist

  Quick view

  Add to cart
