3KW/24V SINGLE PHASE SOLAR INVERTER

Name: 3KW/24V SINGLE PHASE SOLAR INVERTER
SKU: 5274
Availability: InStock

UGX1,248,000.00

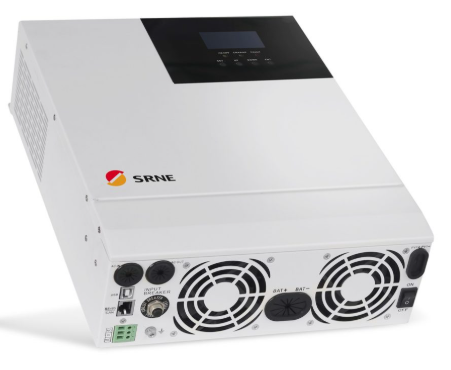

SRNE 3kW 24V Single Phase Hybrid Solar Inverter (HF2430S60-108)

The SRNE 3kW/ 24V is a professional-grade hybrid inverter designed for robust residential backup and off-grid efficiency. Featuring a massive 1600W Solar Capacity and an industry-leading 1o8V DC High-Voltage PV Input, this unit allows for longer solar strings, significantly reducing installation and cabling costs.

With a 3,000W Pure Sine Wave output and a lightning-fast 10ms UPS transfer time, it provides seamless, grid-quality power for sensitive electronics, home offices, and essential appliances. Reliable, scalable, and backed by a 2-year comprehensive warranty.

Technical Highlights:

Power Output: 3,000W Continuous / 6,000VA Peak Surge.
Solar Input: 1600W Max PV Array Power.
High-Voltage MPPT: 30V – 90Vdc
Charging Power: 80A Solar / 60A AC Utility Charging.
Compatibility: Optimized for LiFePO4 (Lithium), Gel, AGM, and Flooded batteries.
Reliability: Pure Sine Wave ( $<3\%$ THD) with full industrial safety protection
Surge Duration: Typically up to 5 seconds.

Categories: Solar, Uncategorized

Description
Reviews (0)

Description

SRNE 3kW 24V Single Phase Hybrid Solar Inverter (HF2430S80-100)

The SRNE HF2430S60-108sa professional-grade, high-frequency hybrid inverter engineered for robust 24V system architectures. This all-in-one power solution integrates a 3,000W Pure Sine Wave inverter, an ultra-high voltage 60A MPPT solar charge controller, and a high-speed AC battery charger.

Designed specifically for medium-sized residential backups and off-grid home offices, it features a 108V DC PV input stage typically reserved for much larger systems. This ensures maximum efficiency, significantly reduced installation costs, and high-performance energy management, all backed by a 2-year comprehensive manufacturer warranty.

Advanced Engineering Highlights

Ultra-High Voltage PV Input (108V DC Voc): Standing out from standard 24V inverters, the 108V Voc limit allows you to wire multiple solar panels in a single series string. This minimizes DC line losses and drastically lowers installation costs by allowing for thinner copper cabling and eliminating expensive combiner boxes.
Massive 1600W Solar Capacity: Optimized to manage a heavy 1600 solar array on a 24V platform. This enables the system to power significant daytime loads (like pumps or large fridges) while simultaneously fast-charging the battery bank at up to 60A.
High-Precision MPPT Tracking: The integrated Maximum Power Point Tracking (MPPT) operates across a wide window (30V – 90V DC), extracting up to 30% more energy than standard controllers, even in low-light or high-heat conditions.
Pure Sine Wave Precision: Delivers grid-quality electricity with <3% Total Harmonic Distortion (THD), ensuring zero humming or long-term damage to sensitive electronics like Laptops, LED TVs, and medical equipment.
UPS-Grade Reliability: Featuring a lightning-fast 10ms transfer time, this unit ensures that Wi-Fi routers, servers, and PCs remain powered without rebooting during a grid failure.
Universal Battery Compatibility: Includes fully user-definable charging parameters pre-optimized for LiFePO4 (Lithium), Gel, AGM, and Flooded batteries.

Technical Specifications Table

Feature	Specification	Engineering Significance
Model Number	HF2430S60-108	High-Frequency 24V Series
Rated Output Power	3,000W (3.0kW)	Continuous AC output at 230V/50Hz
Peak Surge Power	6,000VA	200% surge for inductive motor starts
Nominal System Voltage	24V DC	Optimized for 24V Battery Banks
Max. PV Array Power	1600W	Large solar harvest for rapid charging
Max. PV Open Circuit	108V DC (Voc)	Supports extra-long series strings
MPPT Voltage Range	30V –90V DC	High-efficiency tracking for 1600w arrays
Max. Solar Charge	80A	High-speed MPPT DC charging
Max. AC Charge	60A	Rapid grid/generator replenishment
Transfer Time	10ms (Typical)	Seamless UPS-grade switching
Warranty	2 Years	Guaranteed industrial reliability

Versatile Applications

Residential Backup: Powers essential household loads including double-door refrigerators, LED lighting, home security systems, and entertainment centers.
Home Office & Business: Ideal for workstations, laser printers, servers, and telecommunications equipment requiring “clean” Pure Sine Wave power.
Agricultural & Remote Sites: High surge capacity (6,000VA) makes it suitable for small pressure pumps, gate motors, and specialized farming equipment.
Mobile & Marine: Perfect for large motorhomes, boats, and off-grid cabins where 24V battery banks are preferred for efficiency.

Customizable Operational Settings

The HF2430S60-1o8 offers three primary output priority modes and four charging modes to suit your specific energy strategy:

Output Priority Modes:
- SOL (Solar First): Maximizes renewable energy use; switches to utility only when solar and battery are insufficient.
- UTI (Utility First): Functions as a high-speed UPS, keeping batteries full and using the grid as the primary source.
- SBU (Solar-Battery-Utility): Optimized for energy savings, using solar/battery first and grid only as a last resort.
Battery Configuration: Fully user-definable charging parameters (Bulk, Float, and Equalization) pre-optimized for LiFePO4 (Lithium), Gel, AGM, and Flooded batteries.

Comprehensive Safety & Protection

The unit features hardware-level protection protocols to ensure the longevity of both the inverter and your battery bank:

PV String Protection: Built-in protection against PV reverse polarity and high-voltage surges.
AC Input/Output Safety: Includes AC back feed protection, over-current circuit breakers, and output short-circuit protection.
Battery Health Management: Prevents battery over-charging and deep-discharge (user-adjustable cut-off voltages).
Thermal Regulation: Intelligent variable-speed fans and aluminum heat sinks prevent overheating during continuous full-load operation.
