Description

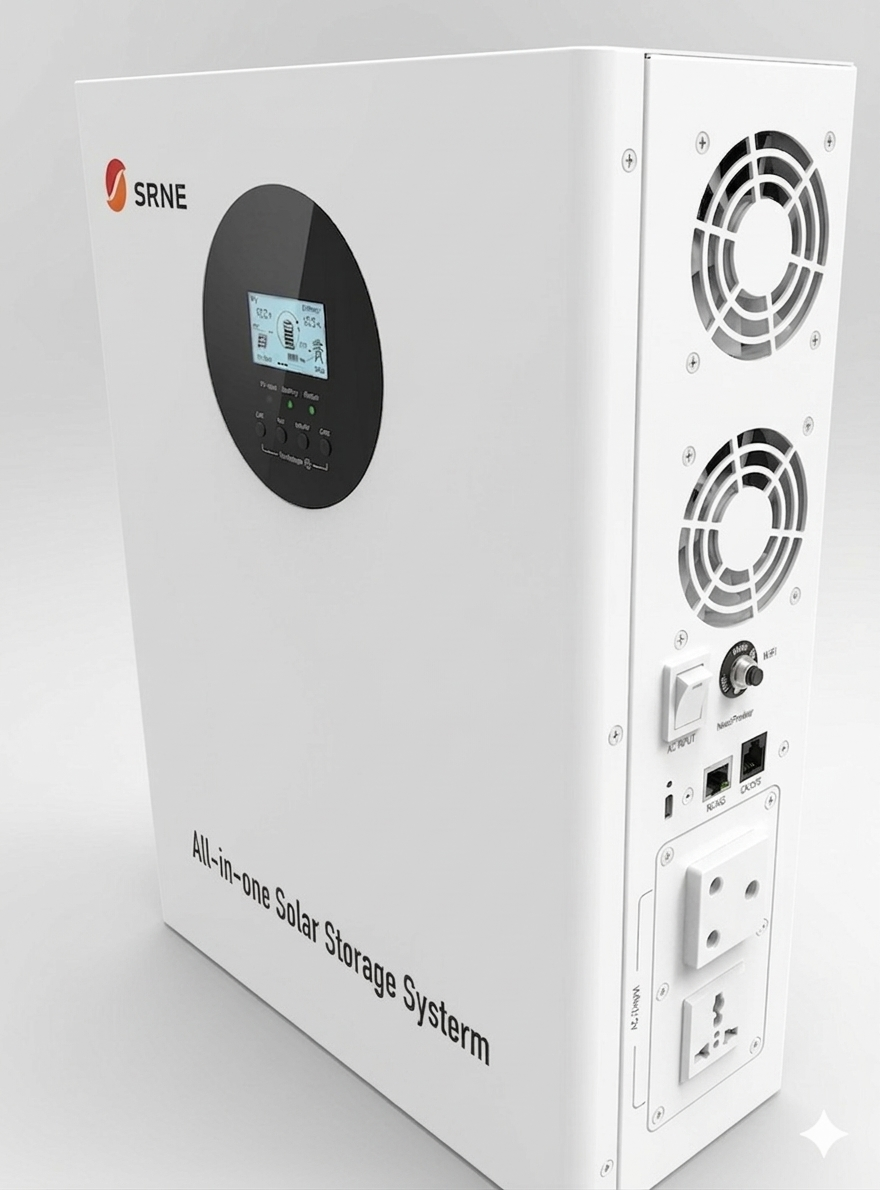

This system is an integrated energy solution designed for modern residential and small office applications. As an “All-In One” solar system, it eliminates the clutter of separate components by housing a 1.5kW Pure Sine Wave Inverter, a 1.28kWh LiFePO4 battery, and an advanced MPPT Solar Charge Controller within a single, high-strength enclosure.
Whether used as a reliable UPS for home offices or as a compact off-grid power station, the EOT01S is built to SRNE’s world-class standards for safety, efficiency, and longevity.
💎 Key Features
-
Plug-and-Play Design: Minimal wiring required. Wall-mount or floor-stand for immediate, space-saving power.
-
SRNE Hybrid Charging: Optimized PV + AC hybrid charging can fully replenish the battery in as little as 1 hour.
-
Unrivaled Durability: Equipped with 100Ah Lithium Iron Phosphate (LiFePO4) cells, rated for 6,000+ deep cycles (15+ year lifespan).
-
Silent Operation: Whisper-quiet cooling (≤ 40dB), allowing for comfortable indoor installation in bedrooms or study areas.
-
Smart DC Output: Includes dedicated 12V DC5521 ports and USB/Type-C fast charging (PD3.0/QC3.0) for direct mobile and gadget power.
-
Advanced Safety: Features automatic and manual bypass modes with an integrated circuit breaker to protect your loads.
📊 Technical Specifications (SR-EOT01S)
| Inverter Parameters | Rating |
| Rated Output Power | 1,500W (1.5kW) |
| Peak / Surge Power | 3,000VA |
| Output Waveform | Pure Sine Wave (Safe for sensitive electronics) |
| Rated Output Voltage | 230Vac (Single-Phase) |
| Switchover Time (UPS) | < 10ms (Typical) |
| Battery Parameters | Rating |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Total Energy Storage | 1.28kWh (1,280Wh) |
| Nominal Voltage / Capacity | 12.8V / 100Ah |
| Cycle Life | 6,000+ Cycles @ 80% DoD |
| Working Voltage Range | 11.2V – 14.4V |
| Charging & Input | Rating |
| Solar Charging Type | Built-in MPPT |
| Max. Solar Input Power | 700W – 1,000W |
| MPPT Voltage Range | 30V – 95Vdc |
| Max. AC Charging Current | 60A |
🏠 Performance: What Can It Power?
This system is the ultimate “Essential Backup” hub:
-
Home Office: 2 Laptops + Wi-Fi Router + Monitor + Desk Lamp for 10+ hours.
-
Entertainment: 55″ Smart TV + Decoder + Soundbar for 6 hours.
-
General Home: 10 LED bulbs + 2 Ceiling Fans for a full night.
-
Security: Full CCTV system (8 Cameras + DVR) for 24+ hours.
