Description

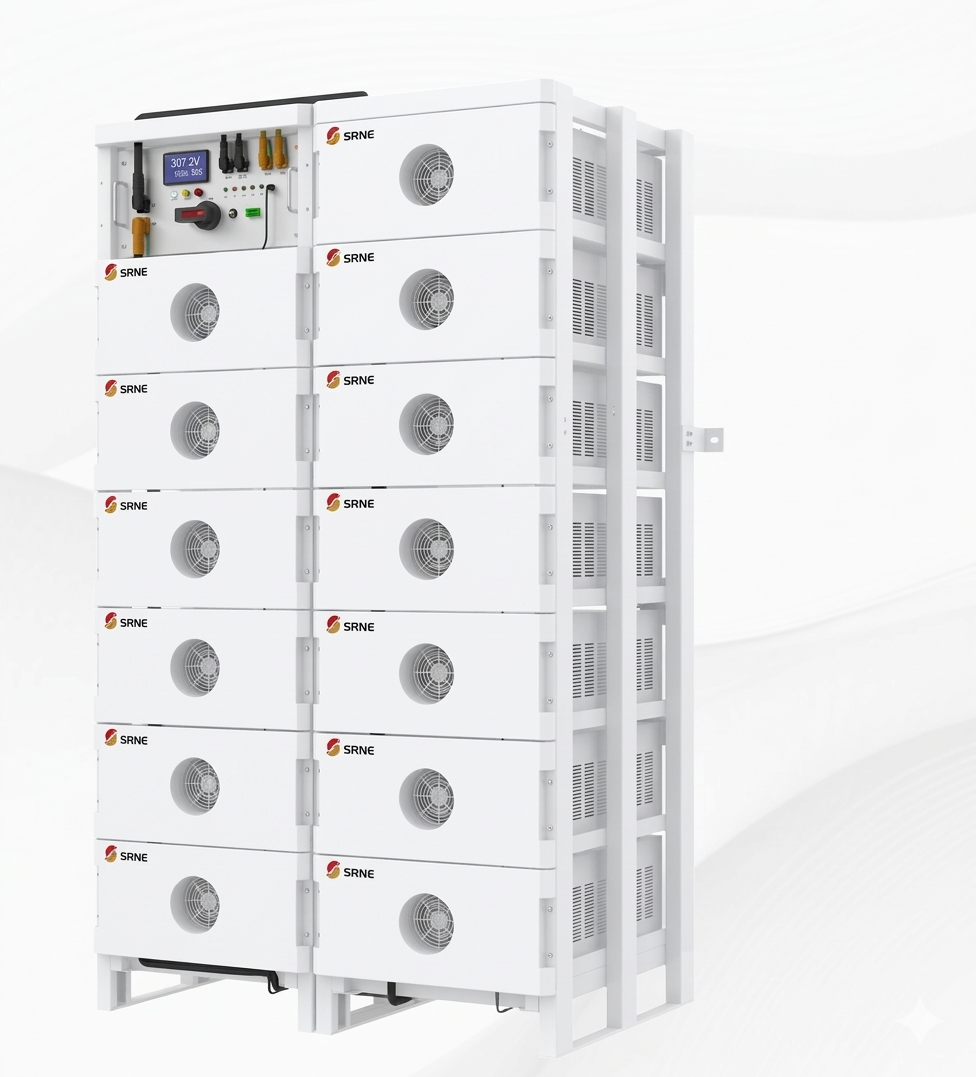

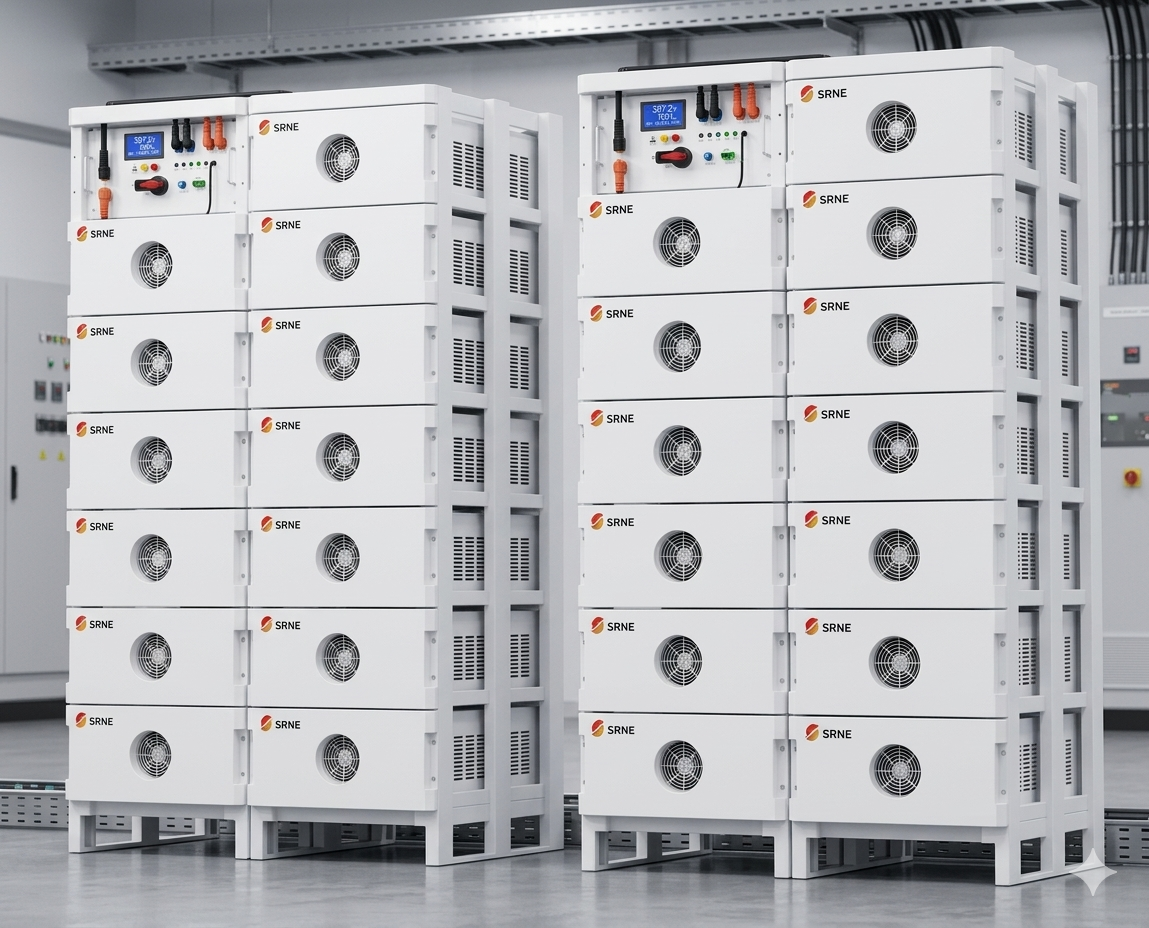

SRNE SR-Ket96C High-Voltage C&I Lithium Energy Storage System
The Ultimate Power Foundation for Commercial & Industrial Independence
The SR-Ket96C is a high-capacity, high-voltage (HV) energy storage solution engineered specifically for the demanding needs of modern enterprises. With a massive 96.5kWh of storage in a single, streamlined cabinet, this system provides the muscle needed to power factories, office complexes, and large-scale agricultural operations.
By utilizing a High-Voltage architecture, the Ket96C delivers superior efficiency, faster charging, and reduced thermal stress compared to traditional low-voltage systems.
Core Features & Business Benefits
-
Massive 96.5kWh Capacity: A single unit provides enough energy to sustain critical operations during peak hours or extended grid outages.
-
High-Voltage Efficiency: Operating at a nominal 307.2V, the system reduces energy loss during conversion, ensuring more of your harvested solar power reaches your machinery and appliances.
-
Industrial-Grade Durability: Built with premium LiFePO4 (Lithium Iron Phosphate) cells, the system is rated for Greater than or equal to 6,000 cycles, providing over 15 years of reliable daily service.
-
Seamless C&I Integration: Designed for a perfect “handshake” with SRNE 50kW and 60kW Three-Phase Hybrid Inverters, creating a unified, high-performance micro-grid.
-
Smart Energy Management: Integrated with the Tuya Cloud Platform, allowing facility managers to monitor State of Charge (SOC), health metrics, and savings in real-time via Wi-Fi or 4G.
Technical Specifications
| Electrical Parameter | Specification |
| System Model | SR-Ket96C |
| Nominal Voltage | 307.2V DC |
| Total Energy Capacity | 96.46 kWh |
| Usable Energy (95% DoD) | 91.64 kWh |
| Max. Continuous Charge/Discharge | 200A |
| Peak Discharge (3 Seconds) | 220A |
| Mechanical & Environmental | Specification |
| Dimensions ($W \times D \times H$) | 840 * 590 *s 2095 mm |
| Net Weight | 867.5 kg |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to 55°C |
| Cooling Method | Forced Air Cooling |
Advanced Safety & Protection
The SR-Ket96C features a multi-layer safety protocol managed by the SR-PDU200C Master Controller:
-
Redundant Isolation: Dual-relay system (Positive and Negative) combined with a physical manual breaker for total system lockout during maintenance.
-
Active Balancing: The intelligent BMS ensures every cell in the stack stays balanced, preventing premature aging and maximizing system lifespan.
-
Fire & Surge Safety: Built-in sensors monitor for over-voltage, over-current, and thermal anomalies, with automatic rapid-shutdown capabilities.
Primary Applications
-
Peak Shaving: Automatically discharge stored energy during high-tariff periods to eliminate expensive utility demand charges.
-
Critical Backup (UPS): Protect sensitive server rooms, medical equipment, and production lines from grid instability with sub-10ms switching.
-
Solar Self-Consumption: Store excess daytime solar production for use throughout the night, moving your business toward 100% energy independence.
Blison Energy: Powering Your Enterprise with Precision.
“The SR-Ket96C represents the pinnacle of C&I storage. It is not just a battery; it is a strategic asset that transforms how your business consumes and manages power.”
