Description

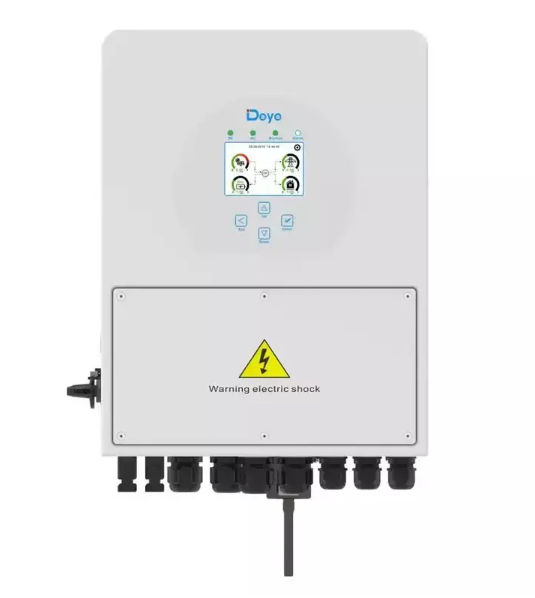

Deye 8kW 48V Hybrid Inverter (SUN-8K-SG051LP1-EU)
The Deye SUN-8K-SG05LP1-EU-SM2 is a premium 8kW single-phase hybrid inverter engineered for modern solar-plus-storage systems that demand performance, flexibility, and intelligent power management. Combining powerful battery integration, high PV input capacity, and robust off-grid capability, this inverter is ideal for residential, rural, and small commercial solar applications across various environments.
🔧 All-in-One Hybrid Inverter for Flexible Energy Systems
At the heart of the SUN-8K-SG05LP1-EU-SM2 lies a robust hybrid architecture that allows users to harness energy from the sun, store it in batteries, draw from the grid, or even integrate a diesel generator. Whether connected to the grid or operating independently in off-grid mode, this inverter delivers continuous, reliable power with a peak output of 16kW for 10 seconds—ideal for startup surges from appliances like pumps, compressors, or air conditioners.
It supports up to 190A of charging and discharging current, making it fully compatible with high-performance lithium-ion battery banks as well as traditional lead-acid batteries. With auto-adaptive BMS communication, battery management is seamless and optimized.
☀️ Powerful PV Input with Dual MPPT Tracking
Designed for high-yield solar systems, the SUN-8K supports:
-
Max PV Input Power: 16,000W
-
Max PV Voltage: 500V
-
MPPT Voltage Range: 150–425V
-
Dual MPPTs with 2 strings per tracker (4 strings total)
This ensures optimal solar production throughout the day, even under partial shading or variable module orientations. The MPPT efficiency exceeds 99%, maximizing energy harvest from every panel.
🔋 Advanced Battery Integration & Parallel Scalability
-
Battery Voltage Range: 40–60V
-
Max Charging/Discharging Current: 190A
-
Battery Type: Lithium-ion or Lead-acid
-
Battery Ports: 1
-
Smart BMS Protocol Auto-Match
Up to 16 inverters can be paralleled for larger systems, either on-grid or off-grid, supporting multi-battery configurations and scalable designs. This flexibility is ideal for phased expansions or multi-building systems.
📶 Smart Control, Monitoring & Connectivity
The inverter features an intuitive color touch LCD interface and supports:
-
Built-in communication via RS485, RS232, CAN
-
Remote monitoring through WiFi, GPRS, 4G, Bluetooth, or LAN (optional modules)
-
Configurable 6 time periods for battery charge/discharge scheduling
Whether you’re monitoring performance or customizing behavior for time-of-use tariffs, the SUN-8K provides granular control.
🛡️ Engineered for Safety, Durability, and Efficiency
-
Max Efficiency: 97.6%
-
Euro Efficiency: 96.5%
-
IP65-rated enclosure for outdoor installations
-
<30 dB noise level with intelligent air cooling
-
Compliant with major global standards: IEC 61727, IEC 62116, NRS 097, VDE-AR-N 4105, and more
-
Full protection suite: reverse polarity, surge protection (Type II), over/under-voltage, short circuit, ground fault detection, and optional arc fault circuit interrupter (AFCI)
📦 Technical Specification
| Feature | Specification |
|---|---|
| Rated Power | 8,000W |
| Max PV Input | 16,000W |
| Max Battery Current | 190A |
| Battery Voltage Range | 40–60V |
| Max AC Passthrough | 40A |
| Off-Grid Peak Power | 16kW (10s) |
| Efficiency | 97.6% |
| MPPT | Dual, 2 strings each |
| Communication | RS485, CAN, WiFi, optional 4G/LAN |
| Protection | IP65, AFCI (optional), RCD |
| Cooling | Intelligent Air Cooling |
| Size (W×H×D) | 366 × 589.5 × 237 mm |
| Weight | 26.8 kg |
Ready to Take Control of Your Energy?
The Deye SUN-OG01LP1-EU-AM2 Eco Hybrid Inverter is a premium choice for modern solar systems seeking performance, reliability, and smart off-grid power. Whether you’re building a new installation or upgrading an old one, this inverter series brings intelligent solar energy to your fingertips.
