9% OFF

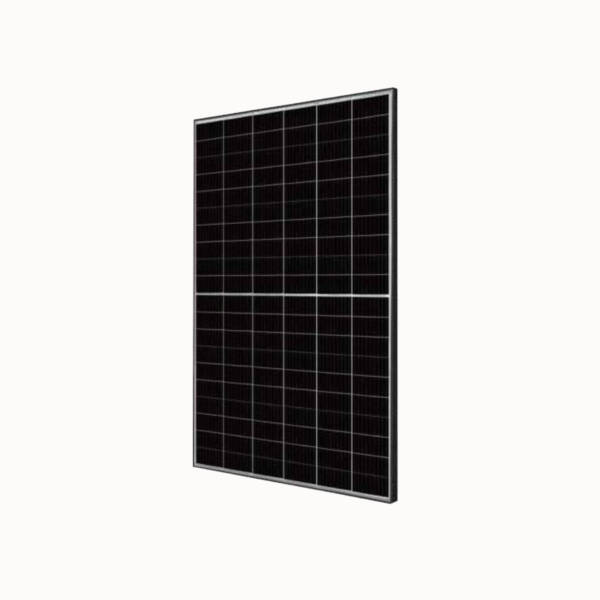

Jinko solar panels

Name: Jinko solar panels
SKU: 0221239
Availability: InStock
Rating: 4.00 (1 reviews)

Rated 4.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: UGX440,000.00.Current price is: UGX400,000.00.

Specifications

Power: 550W

Number of umbrellas: 72 pieces (6×12)

Tempered glass : 3.2mm

Two-circuit junction box : IP67 . protection class

Suitable temperature: from -40˚C to 85˚C

SKU: 0221239 Category: Solar Tag: Solar Panel

Description
Reviews (1)

Description

Specifications

Power: 380W

Number of umbrellas: 72 pieces (6×12)

Tempered glass : 3.2mm

Two-circuit junction box : IP67 . protection class

Suitable temperature: from -40˚C to 85˚C

1 review for Jinko solar panels

Rated 4 out of 5

admin – 24 April, 2023

Good product!
This product is very durable and has stable performance.

Add a review

Related products

12KW/48V SINGLE PHASE,THREE PHASE INVERTER ( PARALLEL)
SRNE 12kW 48V Hybrid Solar Inverter (ASP48120S200-H)

The SRNE 12kW 48V is the definitive high-capacity solution for large-scale energy demands. Delivering a massive 12,000W continuous output and a 24,000VA peak surge, this powerhouse is engineered to manage the heaviest industrial, commercial, and luxury residential loads with ease.

Featuring an industry-leading Dual-MPPT architecture and a high-voltage 800V DC PV Input (model dependent), it maximizes energy harvesting while drastically lowering installation costs. Whether configured for high-capacity single-phase power or a professional Three-Phase industrial grid, this 12kW unit offers the ultimate in reliability, scalability, and performance.

Key Applications:

Commercial & IT Infrastructure: Provides UPS-grade protection with a 10ms transfer time for server rooms, data centers, and large-scale office blocks.

Industrial Machinery: The massive 24,000VA surge capacity easily starts high-torque 6HP to 10HP motors, lathes, and heavy-duty air compressors.

Agricultural & Water Systems: Ideal for powering large borehole pumps, industrial irrigation systems, and climate-controlled greenhouses.

Luxury Residential Estates: Designed for high-demand homes to run multiple 32,000 BTU Air Conditioners, electric geysers, and EV Fast-Chargers simultaneously.

Medical & Laboratory Facilities: Delivers ultra-stable, clean power ( $<3\%$ THD) for sensitive MRI, X-ray, and surgical equipment where power failure is not an option.

Cold Storage & Food Processing: Ensures 24/7 uninterrupted energy for large walk-in freezers and industrial-scale food processing lines.

Scalable Mini-Grids: Supports Parallel Synchronization of up to 6 units, allowing for the creation of massive 72kW Single-Phase or Industrial Three-Phase (415V) power plants.

High-End Kitchens: Easily manages the high-draw demands of induction cooktops, dual electric ovens, and industrial dishwashers running at once.

General Specs:

Rated Output Power: 12,000W / 12,000VA

Nominal Battery Voltage: 48V

Max. PV Input Power: 6600W +6600W

Max. PV Input Voltage: 500V + 500V

MPPT Voltage Range: 125V–425V

No. of MPPTs / Strings per MPPT: 2 / 1

AC Output (Off-Grid):

Nominal Output Voltage: 230/400V AC (3-phase)

Frequency Range: 50Hz / 60Hz

Output Waveform: Pure Sine Wave

Output Mode: Off-grid (default) / Load Power Without Battery

Switch Time: 10ms (typical)

Motor Load Capacity: 6HP

Battery and Charger:

Battery Type: Li-ion / Lead-acid / User-defined

Battery Voltage Range: 40–60V

Max. Solar Charging Current: 260A

Max. Grid/Generator Charging Current: 120A

Max. Hybrid Charging Current: 260A

Efficiency:

MPPT Tracking Efficiency: 99.9%

Max. Efficiency: 92%

European Efficiency: 97.5%

Protection & Features:

IP Protection Rating: IP20 (Indoor only)

Cooling Method: Air cooling

Protection Functions: PV input overvoltage, input current limiting, night reverse current, AC over/undervoltage, battery over/undervoltage, battery overcurrent, short-circuit, overload, heat sink over-temperature

Communication Ports: RS485, CAN, USB, Dry Contact

External Modules (Optional): Wi-Fi / GPRS

Topology: Transformerless

Certifications: IEC62109-1/2, UL1741, RoHS, EN61000-6-1/3, FCC 15 Class B

Mechanical:

Dimensions (H x W x D): 620 × 445 × 130 mm

Net Weight: 27 kg

Environmental:

Operating Temperature: -10°C to +55°C (derate >45°C)

Humidity: <100% (non-condensing)

Noise Level: <60dB

Installation: Indoor only
UGX5,242,000.00
Add to cart
5KW/48V SINGLE PHASE,THREE PHASE INVERTER(PARALLEL)
SRNE 5kW 48V Hybrid Solar Inverter(AFP4850S100-H)

Industrial-Grade Scalable Power: Single & Three-Phase Parallel Hub

The SRNE 5kW 48V is a high-performance “All-in-One” hybrid power center designed for large estates, commercial offices, and industrial workshops. Built on a professional 48V architecture, this unit is uniquely engineered for massive scalability—supporting up to 6 units in parallel to create powerful 30kW Single-Phase or Industrial Three-Phase systems.

With a massive 7,500W Solar Capacity and an industry-leading 500V DC High-Voltage PV Input, it maximizes energy harvest while drastically reducing wiring costs. Robust, intelligent, and backed by a 2-year comprehensive warranty.

GENERAL SPECIFICATIONS

Rated Power: 5kVA / 5kW

Maximum Power: 10,000VA

Nominal Battery Voltage: 48V

Battery Voltage Range: 40-60VDC

Parallel Capacity: Up to 6 units (for single-phase or three-phase configuration)

Cooling Method: Intelligent fan cooling

Protection Degree: IP20 (Indoor use only)

Weight: 13 kg

Dimensions: 446.9 x 350 x 133 mm

Inverter Output

Rated Output Voltage: 230Vac (L/N/PE, Single-Phase)

AC Frequency: 50/60Hz

Waveform: Pure sine wave

Switch Time: 10ms (typical)

Load Motor Capacity: 4HP

Maximum Efficiency: 92%

MPPT Solar Charge Controller

Maximum PV Input Power: 7,500W

Number of MPPTs: 1

MPPT Efficiency: 99.9%

Maximum PV Open Circuit Voltage (Voc): 500VDC

MPPT Voltage Range: 60-450VDC

Maximum PV Input Current: 22A

Battery Charger

Maximum Solar Charging Current: 100A

Maximum AC Charging Current: 60A

Maximum Hybrid Charging Current: 100A

Battery Type Compatibility: Li-ion / Lead-acid / User-defined

Grid/Generator Input

Input Voltage Range: 90-280VDC

Input Frequency Range: 50/60Hz

Bypass Overload Current: 40A

Advanced Features

Supports operation without batteries

Parallel operation up to 6 units for increased capacity and three-phase configuration

Wi-Fi/GPRS remote monitoring (optional external module)

Time-slot function for energy cost optimization

Transformerless topology for improved efficiency and lightweight design

BMS communication support for lithium battery integration

Aesthetic and compact industrial design for easy installation

Safety & Protection

PV overvoltage and current limiting protection

Battery overvoltage and undervoltage protection

AC output overload and short circuit protection

Heat sink over-temperature protection

Reverse polarity protection for PV and battery

Parallel connection error protection

Synchronization signal protection in parallel mode
UGX1,966,000.00
Add to cart

6% OFF

1.5KW COMPLETE INVERTER SYSTEM

Add to cart

ALL IN ONE SYSTEM( 51.2V/5KW INVERTER & 5.12KWH BATTERY)
SRNE EOTO5S All-in-One Solar Storage System

The SRNE EOTO5S is a high-capacity, integrated energy solution designed for total home or office backup. This powerful “all-in-one” unit features a professional 5kW Pure Sine Wave Inverter and a massive 5.12kWh Lithium (LiFePO4) Battery, delivering reliable, high-voltage performance in a sleek, space-saving cabinet. The inverter has a 3 years warranty & the battery 5 years.

Key Specifications

Model: EOTO5S

Inverter Power: 5kW (5000W) Continuous Output

Battery Capacity: 5.12kWh (51.2V / 100Ah)

Battery Type: Premium Lithium Iron Phosphate (LiFePO4)

Surge Power: 10,000W (for heavy motor starts)

Why It Stands Out

High Performance: Effortlessly powers heavy-duty appliances like air conditioners, pumps, and kitchen machinery.

Maximum Efficiency: The 51.2V architecture ensures faster charging and more stable power delivery.

Elegant Integration: Eliminates complex wiring by housing the inverter and battery in a single, modern unit.

Solar Ready: Built-in high-efficiency MPPT controller for optimized solar energy harvesting.
UGX6,521,000.00
Add to cart

Device Type	Example Load	Estimated Run Time (on 200Ah battery)
Lighting	10 LED Bulbs (10W each)	10 Hours
Entertainment	42″ LED TV + Decoder	6 Hours
Computing	2 Laptops	4Hours
Appliances	Small Energy-Efficient Fridge	5 Hours
Cooling	2 Standing Fans	6 Hours

Feature	Specification
Rated Power	1,500W (1.5kW)
Surge / Peak Power	3,000W (usually for 2–5 seconds)
Output Voltage	230V AC (±5%)
Frequency	50Hz / 60Hz (Auto-sensing)
Waveform	Pure Sine Wave (Safe for electronics)
Transfer Time	10ms (for Computers) / 20ms (Appliances)
Peak Efficiency	90% – 93%

Feature	Specification
Nominal Energy	2.56 kWh (2560 Wh)
Nominal Voltage	25.6V
Nominal Capacity	100 Ah
Standard Charge Current	50A (Recommended)
Max Continuous Charge Current	100A
Max Continuous Discharge	100A
Peak Discharge (3–5 sec)	150A – 200A
Voltage Window	20.0V – 29.2V

Feature	Specification
Cycle Life	>6,000 Cycles (@ 80% Depth of Discharge)
Design Life	10+ Years
Depth of Discharge (DoD)	90% – 95% (Safe usable energy)
Self-Discharge	< 3% per month
BMS Protections	Overcharge, Over-discharge, Over-current, Short-circuit, Temperature
