SRNE 60kW Three-Phase Hybrid Inverter Description

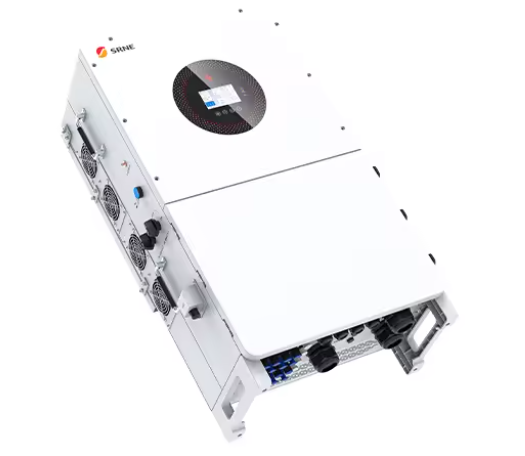

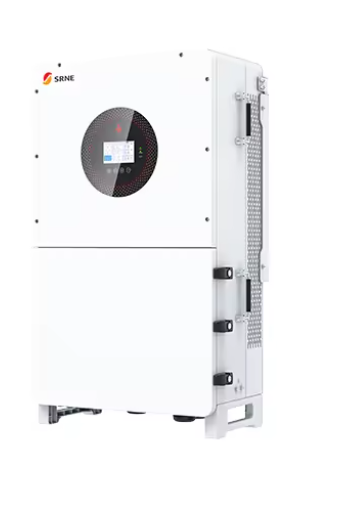

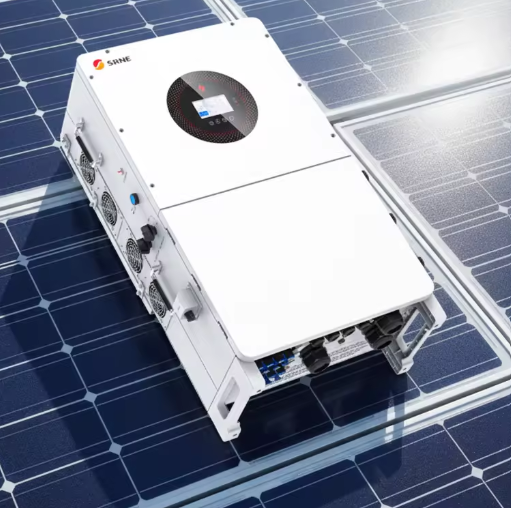

SRNE 60kW Three-Phase Hybrid Inverter
The Ultimate Commercial & Industrial (C&I) Energy Solution
The IESP600SH3 is a high-voltage, three-phase hybrid inverter designed specifically for large-scale commercial power needs. It serves as a central energy hub for factories, office buildings, and farms, managing massive solar arrays and high-capacity battery storage with industrial-grade precision.
Core Engineering Highlights
-
4 Independent MPPT Trackers: Allows for complex roof layouts. You can install panels facing four different directions (North, South, East, West) without losing efficiency due to shading or orientation.
-
Ultra-High Voltage Battery Support: Works with high-voltage battery systems (up to 820V DC). High-voltage architecture reduces cable thickness and energy loss, making the system safer and more efficient for industrial use.
-
DC Over-sizing (1.5x to 1.8x): Supports up to 90kW–108kW of Solar PV input. This allows the system to reach its full 60kW output even in low-light or overcast conditions.
-
100% Unbalanced Load Capability: Unlike standard inverters, this unit can handle 100% load on one phase while the others are idle, preventing system trips in buildings with uneven electrical distribution.
-
Parallel Scalability: Support for 1 to 9 units in parallel, allowing you to scale your system from 60kW up to a massive 600kW for heavy industrial demands
Technical Specifications: IESP600SH3
| Feature | Specification | Engineering Significance |
| Rated Output Power | 60,000W (60kW) | Continuous heavy-duty C&I load |
| Max. PV Input Power | 90,000W – 108,000W | Massive solar harvesting capacity |
| Max. PV Input Voltage | 1,000V DC | Supports long, high-voltage strings |
| MPPT Trackers | 4 Trackers (40A per MPPT) | Maximum layout flexibility |
| Battery Voltage Range | 150V – 820V DC | High-voltage efficiency |
| Max. Charge/Discharge | 80A + 80A (160A Total) | Rapid industrial energy cycling |
| Transfer Time | less than 10ms | UPS-grade backup for servers/machinery |
| Weight | 98 kg | Industrial-grade robust construction |
Primary C&I Applications
-
Manufacturing Plants: Powering heavy machinery, 3-phase motors (up to 25HP), and assembly lines.
-
Commercial Offices: Ensuring uninterrupted power for data centers, lighting, and HVAC systems.
-
Agricultural Micro-grids: Managing large solar pumps and cold storage facilities in remote areas.
-
Peak Shaving: Automatically discharging batteries during “Peak Hours” to avoid high utility demand charges for businesses.
Deep-Dive Technical Specifications: SRNE 60kW (IESP600SH3)
1. Solar (PV) Input Dynamics
The 60kW model utilizes a high-voltage string architecture to minimize transmission loss ($I^2R$ loss) across large industrial rooftops.
-
Max. PV Input Power: 90,000W (90kW) * Max. PV Voltage ($V_{oc}$): 1,000V DC (Allows for strings of up to 18–20 panels in series).
-
MPPT Number / Strings per MPPT: 4 / 2 (Total of 8 PV string inputs).
-
MPPT Voltage Range: 180V – 950V DC.
-
Max. Input Current per MPPT: 40A (Compatible with high-current 600W+ bifacial modules).
2. Battery & High-Voltage (HV) Management
By using a high-voltage battery bank, this system operates with much lower current than 48V systems, reducing heat and increasing overall round-trip efficiency.
-
Battery Voltage Range: 150V DC to 820V DC.
-
Max. Charge/Discharge Current: 100A (Continuous).
-
Charging Strategy: 3-stage adaptive charging with CAN/RS485 communication for HV Lithium racks (e.g., SRNE SR-EOV series).
-
BMS Integration: High-speed synchronization with external Battery Management Systems to monitor cell-level temperature and SOC (State of Charge).
3. AC Output & Grid Interaction
-
Rated AC Output Power: 60,000W (60kW).
-
Max. Apparent Power: 66,000VA (66kVA).
-
Rated Grid Voltage: 230V / 400V (Three-Phase / Four-Wire).
-
Phase Balance: Supports 100% Unbalanced Load. If Phase A needs 20kW and Phase B needs 0kW, the inverter balances the output without tripping.
-
THDi (Total Harmonic Distortion):less than 3 %(Ensures industrial motors and CNC machines run without electronic interference).
4. System Protection & Safety
-
AFCI (Arc Fault Circuit Interrupter): Integrated DC arc detection to prevent fires caused by loose PV connectors or damaged cables.
-
Surge Protection: Built-in Type II SPD (Surge Protective Device) on both DC and AC sides to guard against lightning strikes.
-
Cooling: Intelligent redundant fan cooling (Industrial grade) with IP65 internal compartmentalization.
-
Anti-Islanding: Rapid disconnect (less than 10ms) to protect utility workers during grid maintenance.
-
Industrial Protection: IP65 rated for dust and water protection, with built-in Level II AC/DC Surge Protection and DC Arc Fault Detection (AFCI) to prevent electrical fires.
C&I Performance Matrix
Feature Specification Engineering Benefit Max. Efficiency 98.4% Minimal thermal waste in high-power conversion. Parallel Capacity Up to 10 Units Scalable to 600kW for factory expansions. Enclosure Rating IP65 Can be installed in dusty warehouses or semi-outdoor sheds. Operating Altitude 4,000 Meters Specialized for high-altitude industrial sites. Transfer Time Less than 10ms Seamless backup for critical office servers.
Mechanical Data
-
Dimensions: 820 * 600* 245mm (Compact for its power class).
-
Weight: 98.0 kg (Requires mechanical lift for installation).
-
Noise Level: less than 60 dB (Quiet enough for office-adjacent utility rooms).
-
