RACK MOUNT LIFEPO4( 51.2V/100AH 5.12KWH - Image 2

RACK MOUNT LIFEPO4( 51.2V/100AH 5.12KWH

Name: RACK MOUNT LIFEPO4( 51.2V/100AH 5.12KWH
SKU: 5235
Availability: InStock

UGX3,869,000.00

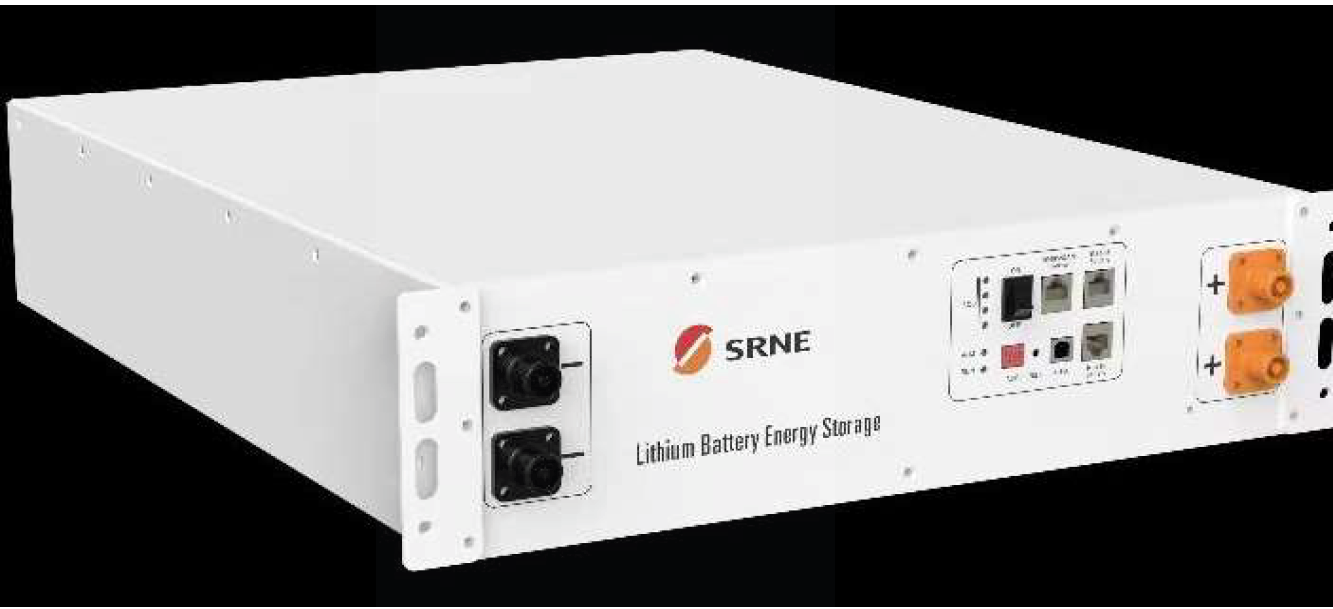

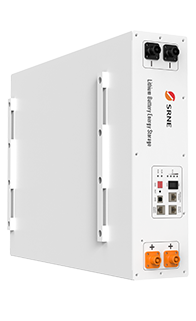

5.12kWh Rack-Mount LiFePO4 Battery (51.2V 100Ah)

The SRNE 5.12kWh Rack-Mount is a professional-grade power storage module designed for high-efficiency 48V solar systems. Built into a standard 3U server-rack chassis, this 100Ah Lithium Iron Phosphate (LiFePO4) battery provides a compact, high-capacity solution for residential backup and commercial energy security.

Technical Profile

Total Energy: 5.12kWh (51.2V / 100Ah)
Battery Type: Premium LiFePO4 (Lithium Iron Phosphate)
Service Life: >6,000 Cycles (10+ year design life)
Max Discharge: 100A (Supports loads up to 5,000W)
Scalability: Parallel up to 16 units (81.92kWh total)

What It Can Run (Estimated)

Full Home Office: (2 Desktop PCs, 4 Monitors, Router, Lights) – Up to 11 Hours
Critical Backup: (Inverter Fridge, LED Lights, Wi-Fi) – Up to 30 Hours
Climate Control: (9,000 BTU Inverter Air Conditioner) – Up to 5.7 Hours
Entertainment: (65″ Smart TV, Soundbar, Gaming Console) – Up to 23 Hours

Top 4 Reasons to Choose This Model

Professional Organization: Designed to fit standard 19-inch racks, keeping your power room clean, secure, and well-ventilated.
Smart Monitoring: Features integrated RS485/CAN communication ports that sync directly with your inverter for 100% accurate battery data.
Advanced Safety: The built-in Smart BMS (Battery Management System) automatically protects against over-voltage, overheating, and short circuits.
High-Efficiency Power: The 51.2V architecture reduces heat and energy loss during high-power use compared to 12V or 24V systems.

Category: Solar

Description
Reviews (0)

Description

SRNE 5.12kWh Rack-Mount LiFePO4 Battery (51.2V 100Ah)

The SRNE 5.12kWh Rack-Mount is a professional-grade energy storage module designed for high-efficiency 48V/51V solar systems. Housed in a standard 3U server-rack chassis, this 100Ah Lithium Iron Phosphate (LiFePO4) battery provides a scalable, space-efficient solution for residential backup and commercial power security.

Technical Power Ratings

Component	Specification	Details
Model	EOC05B-UL	Rack-Mount Series
Nominal Voltage	51.2V	48V System Compatible
Nominal Capacity	100Ah	5,120Wh (5.12kWh) Total
Standard Charge Current	50A	Optimized for longevity
Max. Continuous Charge	100A	Rapid recharge support
Max. Continuous Discharge	100A	Supports up to 5kW continuous loads
Cycle Life	>6,000 Cycles	@ 80% DOD

Below are the estimated runtimes based on a 90% Depth of Discharge (4.6kWh usable energy).

Estimated Runtime Table

Appliance Type	Load (Watts)	Estimated Runtime
LED Lights (x10)	100W	46 Hours
Wi-Fi Router & CCTV System	60W	76 Hours
Laptop & 27″ Monitor	100W	46 Hours
Smart TV (65″) & Soundbar	200W	23 Hours
Energy Efficient Fridge (Inverter)	150W (avg)	30 Hours
Desktop Gaming PC	400W	11.5 Hours
Microwave Oven (Continuous)	1200W	3.8 Hours
Inverter Air Conditioner (9k BTU)	800W (avg)	5.7 Hours
Borehole / Pressure Pump (0.5HP)	375W	12.2 Hours

Multi-Load Performance Scenarios

Scenario	Total Load	Total Runtime
Basic Night Backup (Lights, Fridge, Wi-Fi, TV)	400W	11.5 Hours
Full Home Office (2 PCs, Printer, Router, Lights, Fan)	600W	7.5 Hours
Heavy Daytime Load (Fridge, AC, TV, Office, Lights)	1500W	3 Hours

Important Efficiency Factors

Inverter Conversion: These figures account for a standard 90% inverter efficiency.
Self-Discharge: Modern LiFePO4 cells have extremely low self-discharge, ensuring your backup is ready when the grid fails.
Continuous vs. Peak: While the battery can run a microwave or pump, these are high-draw items. The battery is best used to sustain medium loads (Fridge, Lights, Electronics) for extended durations.

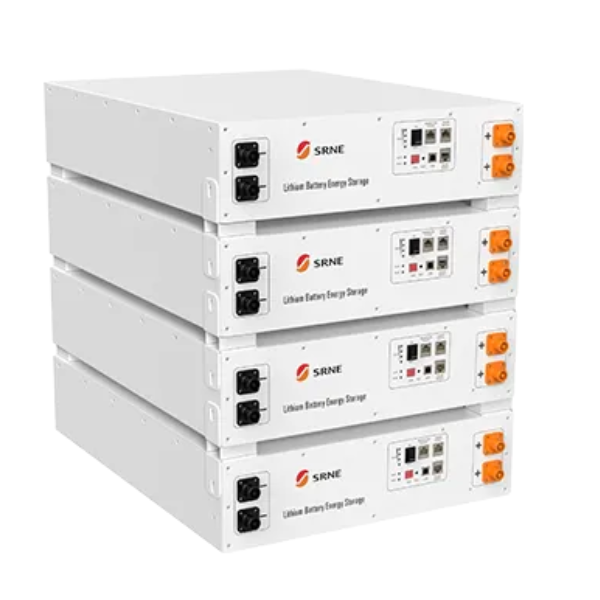

Scalability: If these runtimes are insufficient for your needs, you can easily parallel up to 16 units to multiply these hours.
Advanced Smart BMS: The integrated Battery Management System provides real-time monitoring and protection against over-voltage, under-voltage, over-current, and temperature spikes.
Smart Communication: Equipped with RS485 and CAN communication ports, ensuring full data synchronization with major inverter brands for optimized charging and state-of-charge (SOC) accuracy.

Why Choose the Rack-Mount Series?

The rack-mount format is the industry standard for reliability. By moving to a 51.2V architecture, you reduce the current (amperage) required to pull the same power, which means cooler operation, thinner cables, and higher overall system efficiency compared to 12V or 24V setups.

Reviews

There are no reviews yet.

Be the first to review “RACK MOUNT LIFEPO4( 51.2V/100AH 5.12KWH”
