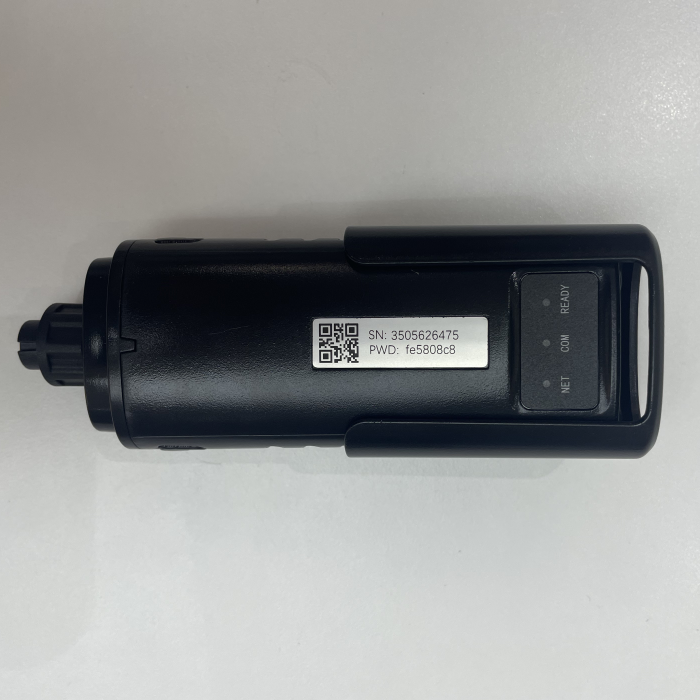

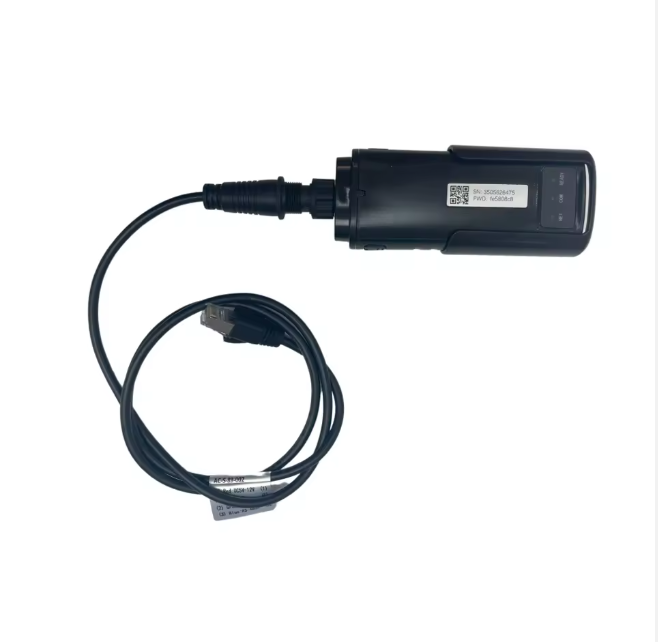

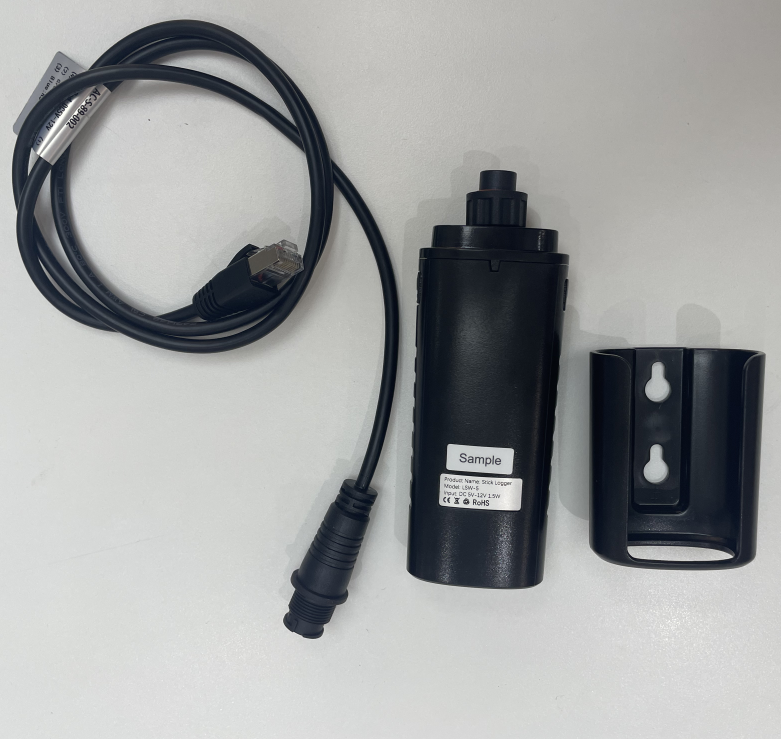

SOLARMAN WIFI KIT (108306)

Name: SOLARMAN WIFI KIT (108306)
SKU: 5389
Availability: InStock

UGX188,000.00

SOLARMAN Wi-Fi Kit | Smart Monitoring Kit (108306)

A high-performance external data logger designed for industrial and residential SRNE inverters. Utilizing RS-485/RS-232/TTL communication, it ensures stable data transmission to the SOLARMAN portal for advanced analytics and remote O&M. The essential bridge between your solar system and your smartphone. This “Plug-and-Play” Wi-Fi kit connects your SRNE inverter to the cloud, giving you 24/7 control over your energy production and battery status from anywhere in the world.

- Plug & Play: Direct interface with no complicated wiring.
- Real-Time Data: View live power flow and savings on the SOLARMAN App.
- Instant Alerts: Receive push notifications for system updates or faults.
- Weatherproof: IP65 rated for reliable indoor or outdoor use.
- Smart Analytics: Track your savings and energy efficiency daily.
- Reliability: Industrial-grade components with external antenna for superior range.

  SOLARMAN WIFI KIT (108306) | Communication PortRS485 / RS232 / TTL | Protection RatingIP65 (Weatherproof for outdoor inverters) | 1-Year Warranty

Categories: Solar, Uncategorized

Description
Reviews (0)

Description

SOLARMAN Wi-Fi Kit| Remote Monitoring Stick

The SOLARMAN Wi-Fi Kit ( 108306) is the essential communication bridge for your solar systems. This “Plug-and-Play” monitoring stick connects directly to your SRNE inverter, allowing you to monitor performance, manage energy flow, and troubleshoot issues from anywhere in the world.

1. Core Functionality

The Wi-Fi kit collects data from the inverter via the RS-485 / RS-232 / TTL interface and transmits it to the SOLARMAN cloud server using your local wireless network. It enables real-time visualization of your solar production and battery health.

2. Technical Specifications

Feature	Specification
Model	LSW-3-C
Inverter Interface	DB9 / Aviation Plug / RJ45 (Model dependent)
Communication Port	RS485 / RS232 / TTL
Wireless Standard	802.11 b/g/n (2.412GHz – 2.484GHz)
Data Collection Interval	Default: 5 Minutes (Adjustable)
Protection Rating	IP65 (Weatherproof for outdoor inverters)
Operating Temperature	$-40°C$ to $85°C$
Security	WPA / WPA2 / WEP / TKIP / AES

3. Key Features

Plug & Play: No complicated wiring. Simply plug it into the dedicated “Wi-Fi/GPRS” port on your SRNE inverter.
Real-Time Monitoring: View live power generation, battery SOC, and household consumption via the SOLARMAN Smart App (iOS/Android) or Web Portal.
Remote Firmware Updates: Allows technical teams to update inverter software remotely, reducing the need for site visits.
Fault Alerts: Receive instant push notifications if the system detects an error (e.g., Grid Failure, Battery Low, or Overload).
Data Backup: Built-in internal memory ensures that if your Wi-Fi drops, the data is stored and automatically uploaded once the connection is restored.

How to Connect (Quick Guide for Clients)

Plug the SOLARMAN Kit into the inverter’s communication port.
Open the SOLARMAN Smart App and scan the QR code on the stick.
Follow the in-app prompts to connect the stick to your home or business Wi-Fi network.
Start monitoring your solution instantly!

Reviews

There are no reviews yet.

Be the first to review “SOLARMAN WIFI KIT (108306)”

Related products

1% OFF

3KW COMPLETE SOLAR SYSTEM

The 3kw inverter system can handle heavier appliances, but to protect your 2.56kWh battery, it is best to run these one by one, preferably during the day while the sun is out since the solar panels power your home directly while simultaneously charging the battery.

Here is a breakdown of what typically comes in this package and what it can actually do.

Appliance Category	Examples	Total Load
Daily Essentials	20 LED Bulbs, 2 Fans, Wi-Fi, CCTV	~400W
Entertainment	2 Smart TVs, Soundbar, Decoder	~300W
Productivity	2 Laptops, Desktop PC	~400W
Kitchen	Fridge + Small Chest Freezer	~200W (Avg)

📄 Technical Specifications: 3kW Hybrid Inverter

1. Output (AC)

Below is the Technical Datasheet for the 3KW Complete Inverter System. This datasheet covers the three core components: the 3KW Hybrid Inverter, the 2.56kWh Lithium Battery, and the 450W Solar Array.

1. 3KW Hybrid Solar Inverter (24V).

Parameter	Specification
Rated Output Power	3,000W (3.0kW)
Surge / Peak Power	6,000VA (Seconds)
Output Waveform	Pure Sine Wave (Safe for Electronics)
Nominal Battery Voltage	24V DC
Max. Solar (PV) Input	4,000W (Capacity to add more panels)
MPPT Voltage Range	120V – 450V DC
Max. PV Open Circuit Voltage	500V DC
Transfer Time	10ms (Typical UPS Speed)
Peak Efficiency	> 92%

📄 Technical Datasheet: 2.56kWh LiFePO4 Hybrid Battery

2. Electrical Specifications

Feature	Specification
Nominal Energy	2.56 kWh (2560 Wh)
Nominal Voltage	25.6V
Nominal Capacity	100 Ah
Standard Charge Current	50A (Recommended)
Max Continuous Charge Current	100A
Max Continuous Discharge	100A
Peak Discharge (3–5 sec)	150A – 200A
Voltage Window	20.0V – 29.2V

Lifespan & Performance

Feature	Specification
Cycle Life	>6,000 Cycles (@ 80% Depth of Discharge)
Design Life	10+ Years
Depth of Discharge (DoD)	90% – 95% (Safe usable energy)
Self-Discharge	< 3% per month
BMS Protections	Overcharge, Over-discharge, Over-current, Short-circuit, Temperature

Technical Datasheet: 450W Mono-PERC Solar Panel

Electrical Performance (at STC*)

Feature	Specification
Maximum Power (Pmax)	450W
Open Circuit Voltage (Voc)	49.1V – 49.8V
Short Circuit Current (Isc)	11.4A – 11.6A
Max Power Voltage (Vmp)	41.0V – 41.5V
Max Power Current (Imp)	10.8A – 11.0A
Module Efficiency	20.4% – 20.9%
Power Tolerance	0 to +5W

Note: STC (Standard Test Conditions) = $1000W/m^2$ irradiance, 25°C cell temperature.

Mechanical & Design

Feature	Specification
Cell Type	Monocrystalline (Half-cut cells)
Number of Cells	144 (6 x 24) or 120 (6 x 20)
Dimensions	~ 2094 x 1038 x 35 mm
Weight	~ 23.5 kg – 25.0 kg
Front Glass	3.2mm Tempered Glass (Anti-reflective)
Frame	Anodized Aluminum Alloy (Silver or Black)
Connector	MC4 Compatible
Junction Box	IP68 Rated (3 bypass diodes)

Temperature & Operational Limits

Feature	Specification
Operating Temp Range	-40°C to +85°C
Max System Voltage	1500V DC
Max Series Fuse Rating	20A – 25A
Temp. Coefficient (Pmax)	-0.35% / °C
Wind/Snow Load	2400Pa / 5400Pa

Add to cart

WALL MOUNT LIFEPO4(12.8V/200AH 2.56KWH)
SRNE 12.8V 200Ah Wall-Mounted LiFePO4 Battery

The SRNE 12.8V 200Ah is a premium, space-saving energy storage solution delivering 2.56kWh of reliable power. Built with advanced Lithium Iron Phosphate technology, it offers a modern, wall-mounted alternative to traditional lead-acid batteries, providing 10x the lifespan and superior safety for 12V solar and backup systems. Maximum parallel connection is 4 pieces with a warranty of 5 years.

Quick Technical Profile

Capacity: 2.56kWh (12.8V / 200Ah)

Battery Type: LiFePO4 (Lithium Iron Phosphate)

Cycle Life: >6,000 Cycles (@ 80% DOD)

Design: Compact Wall-Mount with Integrated BMS

Standard charge/discharge current:100A

Support Wi-Fi monitoring.

Maximum charging voltage

What It Can Run (Estimated)

This unit is ideal for essential circuits and mobile power:

Full Home Office: (Laptop, Wi-Fi, Monitor) – Up to 22 Hours

Essential Backup: (Fridge, LED Lights, TV) – Up to 6 Hours

Entertainment: (Smart TV, Soundbar, Console) – Up to 10 Hours

Mobile Living: (12V Fridge, Fans, Lighting) – Up to 48 Hours

Why Choose This Battery?

Sleek Integration: Mounts directly to the wall to save valuable floor space.

Deep Discharge: Safely use nearly 100% of capacity without damaging the unit.

Smart Security: Internal BMS prevents overcharging, short circuits, and overheating.

Maintenance Free: Fit-and-forget technology with a 10+ year design life.
UGX2,278,000.00
Add to cart

0% OFF

A 5KW COMPLETE INVERTER SYSTEM

📦 Package Components

5KW (5000W) Hybrid Inverter (48V): A professional-grade 48V system. The higher voltage makes the system more efficient, cooler, and safer under heavy loads. It features a 10ms UPS-speed switchover.
5.12kWh Lithium (LiFePO4) Battery: A large 100Ah / 51.2V module. This “energy tank” is double the size of the 3kW package, offering significantly longer runtimes and a 10–15 year lifespan (6,000+ cycles).

Solar Ready: Built-in high-capacity MPPT controller. You can easily add up to 5,500W of solar panels later to become fully energy-independent.

⚡ Power Capability

A 5KW system provides enough “muscle” to run almost an entire household simultaneously.

Daily Essentials	Heavy Appliances	Specialist Loads
40+ LED Bulbs	1.0HP or 1.5HP Inverter AC	Microwave & Toaster
4–6 Ceiling Fans	Washing Machine (Full cycle)	Electric Kettle (2,000W)
3 Smart TVs & Gaming Console	Large Double-Door Refrigerator	Submersible Water Pump
5+ Laptops & Office Printers	Deep Freezer	Electric Iron

⏳ Backup Runtime (Estimated)

Since this system relies on grid-charging (no panels), your backup time depends on your usage:

Light Load (300W): (Lights, Fans, WiFi, TV, Laptops) → ~14–16 Hours
Medium Load (1,000W): (All above + Fridge + Washing Machine) → ~4–5 Hours

Heavy Load (2,500W): (All above + AC or Microwave) → ~1.5–2 Hours

Below is the Technical Datasheet for the 5KW BLISON Complete Backup System. This professional-grade 48V system is designed for high-efficiency energy management and long-term reliability.

1. 5KW Hybrid Inverter (48V / 5000W)

The core controller that manages power between the grid and the battery.

Parameter	Specification
Rated Output Power	5,000W (5.0kW)
Surge / Peak Power	10,000VA (5 Seconds)
Output Waveform	Pure Sine Wave
Nominal Battery Voltage	48V DC
Inverter Efficiency	Up to 93%
Transfer Time	10ms (UPS Speed)
Max Grid Charging Current	60A / 80A (Configurable)
Load Motor Capacity	4HP (Suitable for ACs & Pumps)
Parallel Capability	Up to 6 Units (Optional)

2. 5.12kWh Lithium Battery (LiFePO4)

Massive energy storage using high-density 48V architecture.

Parameter	Specification
Nominal Energy	5.12kWh (5,120Wh)
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Cycle Life	6,000+ Cycles @ 80% DoD
Design Life	15 Years
Max Continuous Discharge	100A (5,000W)
Max Continuous Charge	100A
Standard Depth of Discharge	90% – 95%
Communication Ports	RS485 / CAN / USB (Smart BMS)

3. Operational & Environmental

Parameter	Specification
Cooling Method	Intelligent Variable Speed Fans
Operating Temperature	-10°C to 55°C
Protection Rating	IP20 (Indoor Installation Only)
Mounting	Wall-Mount or Floor Standing
Certifications	CE, IEC 62109, UN38.3, MSDS
System Warranty	2 Years (Inverter) / 5–10 Years (Battery)

⚡ Solar Expansion Potential

Even though this is a backup system (without panels), it is “Solar Ready.” If you decide to add panels later, the technical limits are:

Max Solar Input: 5,500W
MPPT Voltage Range: 120V – 450V DC
Max PV Open Circuit Voltage: 500

Add to cart

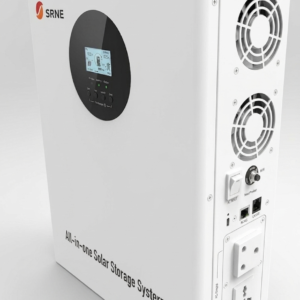

ALL IN ONE SYSTEM(12.8V/1.5KW INVERTER & 1.28KWH BATTERY)
