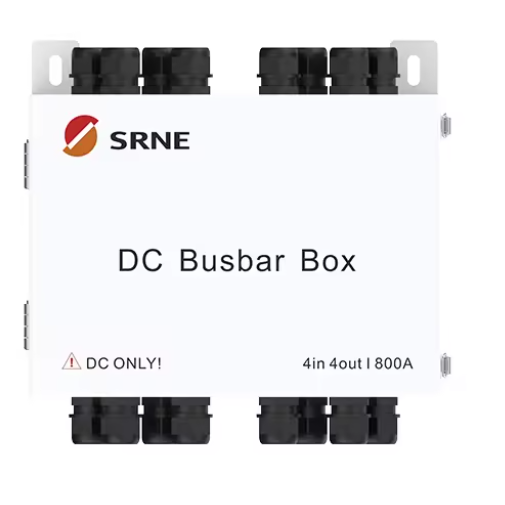

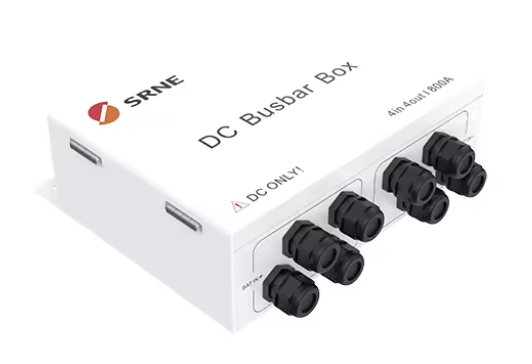

SRNE DCB-1 Battery Busbar Box
The SRNE SR-DCB-1 is an industrial-grade DC Busbar and Distribution Box designed to centralize and protect high-power DC connections in large-scale energy storage systems. Engineered for reliability, it acts as the primary junction between multiple battery banks and high-capacity inverters.
Core Engineering Highlights
-
Voltage Compatibility: Engineered for low-voltage DC systems with an operating range of $\le$ 60V.
-
Massive Current Capacity: Supports a maximum continuous DC current of 800A, making it ideal for systems up to 40.96kW.
-

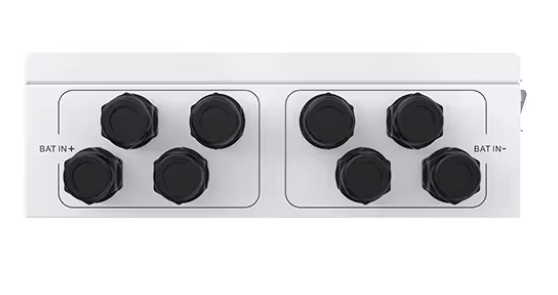

High-Density Wiring: Features 8 positive and 8 negative wiring terminals ($8+8$ configuration) for complex multi-battery or multi-inverter setups.
-
Environmental Protection: IP65 Rated enclosure, providing complete protection against dust and high-pressure water jets for indoor or outdoor installations.
-
Thermal Endurance: Designed to operate in extreme conditions with a storage temperature range of -40°C to +80°C.
Technical Specifications
| Feature | Specification | Engineering Significance |
| Model Number | SR-DCB-1 | High-Current Busbar Series |
| Voltage Range | less than or equal to 60V DC | Optimized for 12V/24V/48V systems |
| Max DC Current | 800A | Professional-grade power throughput |
| Max System Power | 40.96kW | High-density energy management |
| Terminal Configuration | 8 + 8 | Centralized junction for 8 battery strings |
| Ingress Protection | IP65 | Industrial weatherproof sealing |
| Weight | 4.5kg | Robust, heavy-duty construction |
Primary Applications
-
Centralized Battery Storage: Managing parallel connections for large Lithium ($LiFePO4$) or Lead-Acid battery banks.
-
Multi-Inverter Systems: Bridging high-capacity hybrid inverters to a shared DC bus.
-
Industrial Off-Grid Hubs: Providing a secure, fused junction point for large-scale solar power plants.
-
Commercial Energy Storage: Scalable distribution for business backup and peak-shaving systems.
