SRNE DCB-2 Battery Busbar Box

The SR-DCB-2 is a professional 300A DC distribution hub featuring an integrated 400A DC Breaker. Specifically designed for systems operating at $\le$ 60V, it simplifies complex wiring by providing a safe, centralized junction for up to 4 battery strings. It is the perfect all-in-one solution for residential and commercial 48V solar storage systems.

DCB-2 Battery Busbar Box | Max. Dc current 300A | Max. power 15.36KW | 1-Year Warranty

Category: Solar

Description
Reviews (0)

Description

SRNE DCB-2 Battery Busbar Box

Efficient DC Power Distribution with Integrated Safety

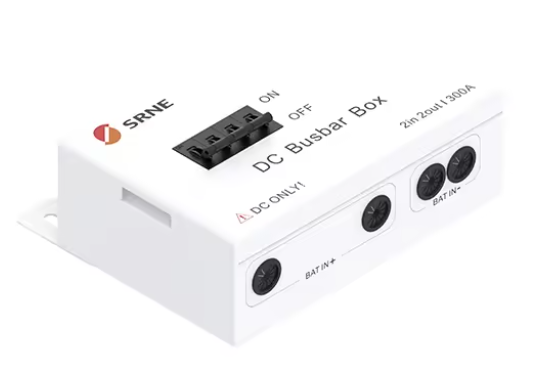

The SRNE SR-DCB-2 is a compact, high-performance DC Busbar and Protection Box designed for medium-scale energy storage systems. While the DCB-1 is built for massive industrial throughput, the DCB-2 is engineered for versatility and safety, featuring an integrated 400A DC Breaker to simplify your installation and protect your battery bank from overcurrent.

Core Engineering Highlights

Voltage Compatibility: Optimized for low-voltage energy storage systems with an operating range of less than or equal to60V.

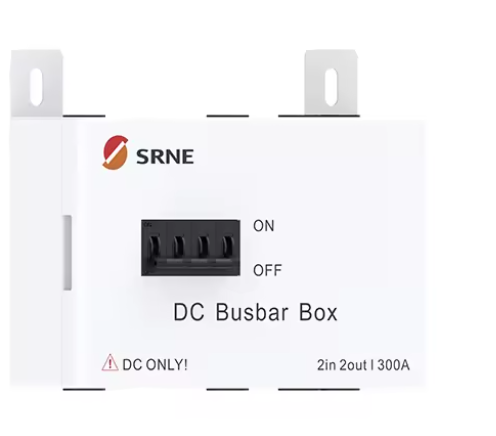

Integrated Safety: Features a built-in 400A DC Breaker, eliminating the need for external fuse holders or breakers between the busbar and inverter.
Balanced Power Handling: Supports a maximum continuous DC current of 300A, handling system loads up to 15.36kW.

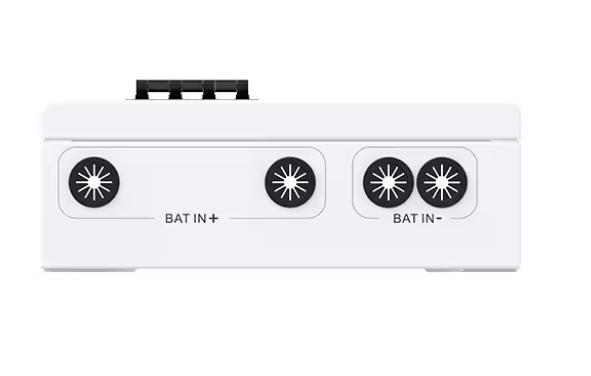

Streamlined Wiring: Equipped with a 4 positive and 4 negative wiring terminal configuration ( $4+4$ ), perfect for paralleling up to 4 battery modules.
Durable Enclosure: IP30 Rated for secure indoor mounting, with a compact footprint that fits easily into power rooms or battery cabinets.
Lightweight Design: At just 3.2kg, it is designed for easy wall-mounting and rapid deployment.

Technical Specifications

Feature	Specification	Engineering Significance
Model Number	SR-DCB-2	Protective DC Busbar Series
Voltage Range	less than or equal to 60V DC	Compatible with 12V / 24V / 48V
Max DC Current	300A	Reliable continuous distribution
DC Breaker	400A (Integrated)	Built-in overcurrent protection
Max System Power	15.36kW	Optimized for mid-range storage
Terminal Configuration	4 + 4	Supports up to 4 battery strings
Ingress Protection	IP30	Professional indoor enclosure
Weight	3.2kg	Compact and easy to install

Primary Applications

Residential Storage: The ideal junction point for 48V LiFePO4 battery stacks (e.g., 4 units in parallel).
Office Backup Systems: Centralizing DC power for 8kW to 12kW hybrid inverters.
Telecom & Security: Reliable DC distribution for remote server racks and surveillance hubs.
Mobile Power Plants: Secure battery management for large-scale overland vehicles and mobile workshops.
