WALL MOUNT LIFEP04( 51.2V/100AH 5.12KWH) BATTERY

WALL MOUNT LIFEP04( 51.2V/100AH 5.12KWH) BATTERY

Name: WALL MOUNT LIFEP04( 51.2V/100AH 5.12KWH) BATTERY
SKU: 5250
Availability: InStock

UGX3,869,000.00

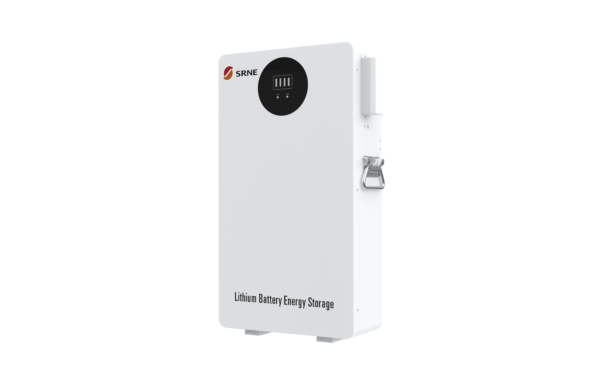

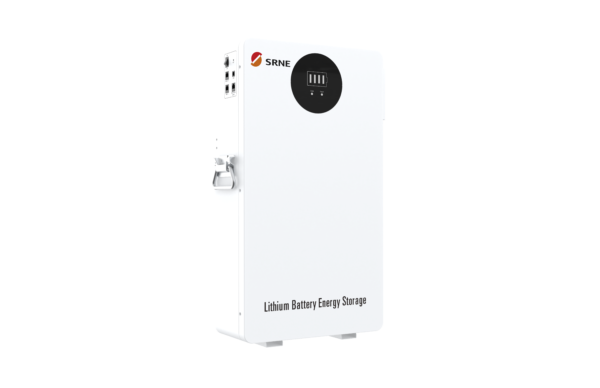

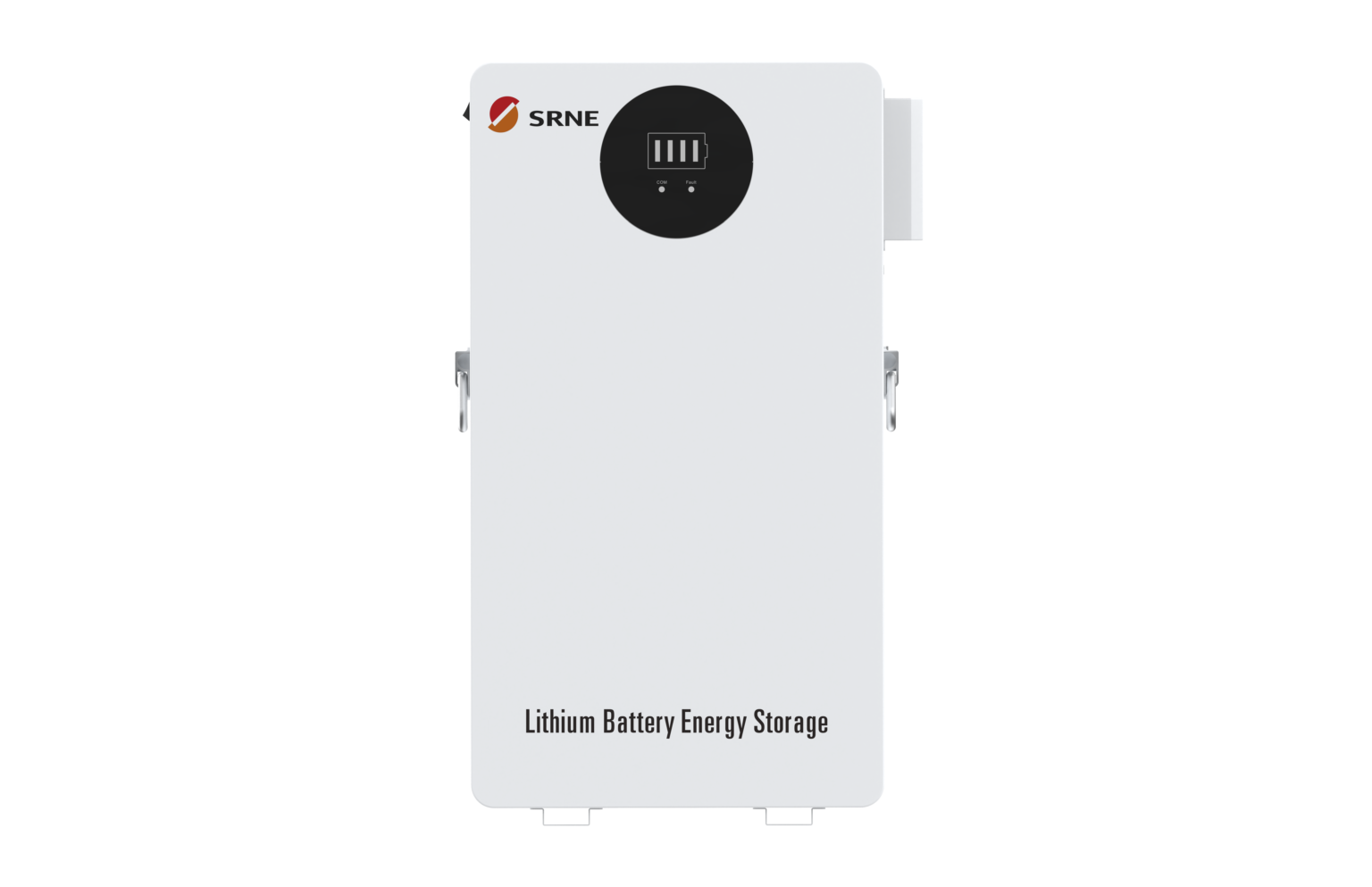

SRNE 5.12kWh Wall-Mount Smart LiFePO4 Battery (SE05B)

The SE05B is an ultra-slim, high-performance energy storage module designed for premium 48V/51.2V solar systems. Featuring a modern, space-saving design and integrated smart monitoring, it provides reliable, long-term power backup for homes and offices.

Technical Ratings

Model: SEO5B
Energy Capacity: 5.12kWh (5,120Wh)
Nominal Voltage: 51.2V (48V System Compatible)
Rated Capacity: 100Ah
Max. Charge/Discharge: 100A (Supports up to 5,000W continuous load)
Maximum charging voltage: 58.4v
Design Life: 6,000+ Cycles (Up to 20 years)
Scalability: Parallel up to 16 units (81.92kWh total)
Warranty : 5 years

What It Can Run (Estimated Runtimes)

Based on a 90% Depth of Discharge (approx. 4.6kWh usable energy).

Appliance Profile	Total Load	Estimated Runtime
Basic Lights & Wi-Fi	150W	30+ Hours
Standard Family Home (Fridge, TV, Fans, Lights)	400W	11–12 Hours
Home Office (2 PCs, Monitors, Printer, Router)	600W	7.5 Hours
High Load (Inverter AC or Pressure Pump)	850W	5.5 Hours

Special Features

Ultra-Slim Profile: Only 10cm thick, making it the most space-efficient wall-mount battery in its class.
Integrated LCD Screen: Real-time digital display for instant monitoring of battery status and SOC%.
Smart Connectivity: Built-in Wi-Fi & Bluetooth for remote monitoring via the SRNE mobile app.
Flexible Installation: Supports both wall-mounting and floor-standing setups with “Plug-and-Play” wiring from either side.
Smart BMS: Professional protection against over-voltage, overheating, and short circuits for maintenance-free safety.

While both batteries deliver 5.12kWh of high-quality lithium power, the EOS series is the “Premium Smart” version, whereas the SE series is the “Classic Standard” version.

Feature	Premium EOS05B	Classic SE05B
Primary Design	Ultra-Slim & Aesthetic (10cm thick)	Standard Wall-Mount (approx. 15cm)
Smart Monitoring	WiFi & Bluetooth Built-in	Bluetooth Only (In some versions)
User Interface	Integrated LCD Screen	LED Indicator Lights
Mobile App	Supports SRNE App (Remote View)	Local Bluetooth Monitoring
Wiring Design	Plug-and-Play (Either Side)	Standard Fixed Wiring Ports
Waterproofing	IP30 (Indoor Optimized)	IP30 (Indoor Optimized)
Max Scalability	Parallel up to 16 Units	Parallel up to 16 Units

Category: Solar

Description
Reviews (0)

Description

SRNE 5.12kWh Smart Wall-Mount LiFePO4 Battery (51.2V 100Ah)

The SRNE 5.12kWh Wall-Mount is a professional-grade energy storage solution designed for high-efficiency 48V/51V solar systems. Engineered with premium Lithium Iron Phosphate (LiFePO4) cells, this unit offers a compact, space-saving alternative to traditional battery banks. It is the ideal “power heart” for modern residential backup and off-grid office environments.

Core Technical Performance

Feature	Specification	Engineering Benefit
Model	SEO5B	Wall-mount architectural design
System Voltage	51.2V (Nominal)	Higher efficiency & lower heat than 12V/24V
Storage Capacity	5,120Wh (5.12kWh)	High-density 100Ah power reserve
Max Discharge	100A (5,000W)	Supports high-surge appliances easily
Service Life	>6,000 Cycles	10–15 year design life (daily cycling)
Communication	CAN / RS485 / RS232	Full data sync with SRNE Hybrid Inverters

Load Capability & Runtime Guide

Estimated runtimes based on a 90% Depth of Discharge (DOD).

Household Load Profile	Avg. Wattage	Estimated Runtime
Critical Essentials (Wi-Fi, LED Lights, 12V Fridge)	150W	30+ Hours
Standard Home Backup (Fridge, Smart TV, Lights, Fans)	400W	11.5 Hours
High-End Office (2 Desktop PCs, 4 Monitors, Printer, Router)	600W	7.5 Hours
Heavy Load (9,000 BTU Inverter AC or Water Pump)	850W	5.5 Hours

Special Technical Features (SEO5B / EOS05B)

Built-in LCD Display: Features a large, integrated screen for real-time monitoring of voltage, state of charge (SOC), and system status directly on the unit.
WiFi & Bluetooth Integration: Monitor your battery from anywhere. Use the dedicated SRNE App to check performance, temperature, and health stats via your smartphone.
Ultra-Slim “EOS” Design: With a width of just 10cm (approx. 4 inches), it is one of the thinnest 5kWh units on the market, saving significant wall and floor space.
Dual-Sided Wiring: Innovative design allows for high-current wiring from either the left or right side, offering maximum flexibility for tight installations.
Massive Scalability: Supports parallel connection of up to 16 units, allowing you to expand your system to a massive 81.92kWh without needing complex external controllers.
6,000+ Cycle Lifespan: Engineered for a 20-year design life, providing reliable power long after traditional batteries have failed.
