Description

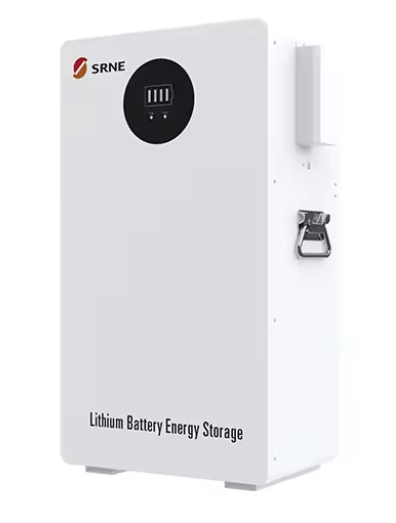

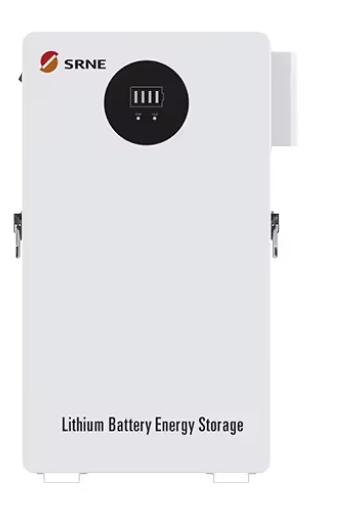

SRNE 10.49kWh Wall-Mount LiFePO4 Battery (51.2V 205Ah)
The SRNE 10.49kWh (SR-SE10B) is a heavy-duty energy storage powerhouse designed for full home backup and large-scale solar systems. By doubling the capacity of standard 5kWh modules, this 205Ah unit provides massive autonomy in a single, high-density wall-mounted chassis.
It is the perfect choice for users who need to run heavy appliances, air conditioning, or entire households through extended power outages.
Key Technical Ratings
| Feature | Specification |
| Model | SR-SE10B |
| Storage Capacity | 10.49kWh (10,490 Watt-hours) |
| Nominal Voltage | 51.2V (Compatible with all 48V Inverters) |
| Rated Capacity | 205Ah (True Grade-A Lithium Cells) |
| Max Continuous Discharge | 200A (Supports loads up to 10,000W) |
| Cycle Life | 6,000+ Cycles (15+ Year Design Life) |
| Communication | CAN / RS485 / Bluetooth / Wi-Fi |
What It Can Run (Estimated Runtimes)
Calculated at 90% Depth of Discharge (approx. 9.4kWh usable energy).
| Appliance Profile | Total Load | Estimated Runtime |
| Whole House Essentials (Lights, Wi-Fi, 2 Fridges, TV) | 600W | ~15–16 Hours |
| Modern Home Office (3 PCs, Server, AC, Lights, Kettle) | 1,500W | ~6–7 Hours |
| Heavy Cooling (12,000 BTU Inverter AC – Continuous) | 1,200W | ~8 Hours |
| High-Power Load (Water Pump + Microwave + Ironing) | 3,000W | ~3 Hours |
Special Features
-
Massive 200A BMS: Most batteries only allow 100A; this unit supports a massive 200A discharge, allowing you to run high-surge appliances like pumps and air conditioners simultaneously.
-
Smart App Monitoring: Integrated Bluetooth and Wi-Fi allow you to track state-of-charge (SOC), temperature, and individual cell health directly from your smartphone.
-
Plug-and-Play Parallelism: Expandable up to 16 units in parallel for a total system capacity of over 160kWh.
-
Advanced Safety Suite: The industrial-grade Battery Management System (BMS) provides automatic protection against overcharge, deep discharge, and thermal runaway.
-
Compact “Double-Power” Chassis: Delivers 10kWh of power in a single enclosure, reducing the wiring complexity and wall space required for two separate 5kWh units
Installation & Mounting
-

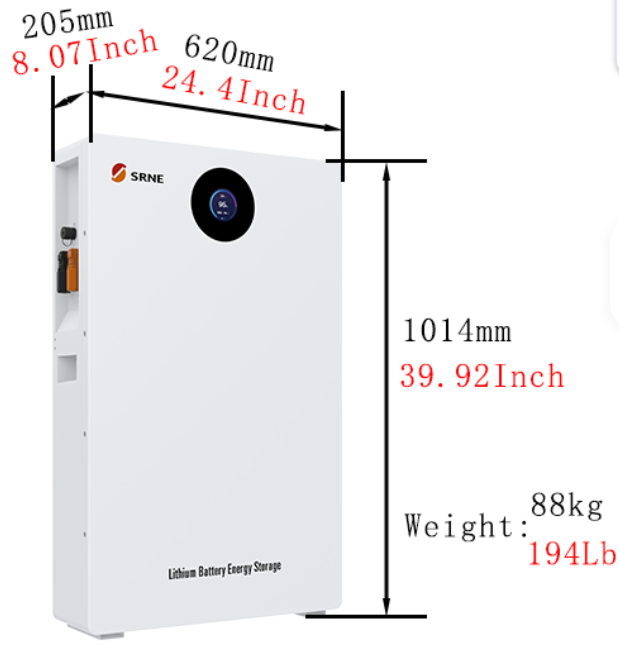

Wall Requirements: Must be mounted on a solid concrete or reinforced brick wall capable of supporting >100kg.
-
Clearance: Maintain at least 20cm of clearance on all sides for ventilation and cable management.
-

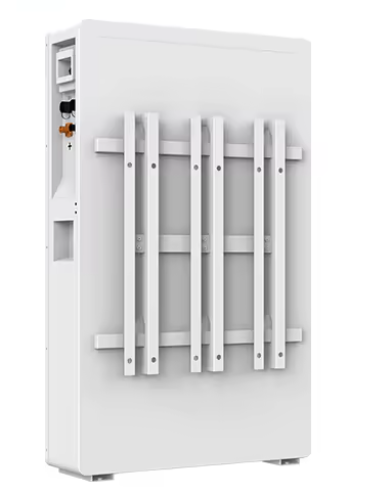

Mounting Bracket: Secure the heavy-duty bracket first using the provided M8 expansion bolts before lifting the battery onto the hooks.
Wiring & Port Configuration
-

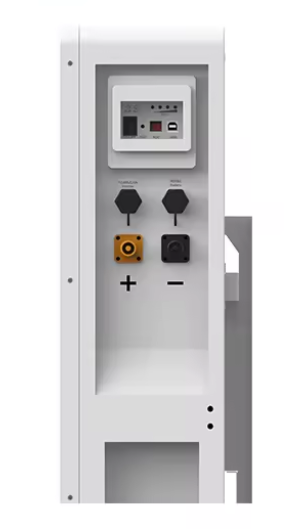

DC Terminals: Features dual positive (+) and negative (-) ports for easy parallel wiring.
-
Communication Ports: * CAN/RS485: For Inverter communication (Default: Pylontech/SRNE protocol).
-
RS232: For PC software debugging.
-
-
Parallel Setup: Support for up to 16 units. When paralleling, use the ADS (Address) Dip Switches to assign each battery a unique ID (Master = 0000).
System Startup Procedure
-
Connect DC Cables: Ensure correct polarity (+ to +, – to -) between battery and inverter.
-
Connect Comm Cable: Link the battery “CAN” port to the inverter “BMS” port.
-
Power On: Toggle the physical Power Switch on the side to “ON.”
-
Soft Start: Press and hold the “Reset/Wake” button for 3 seconds until the LED indicators light up.
Safety & Maintenance
-
Smart BMS: Automatically protects against over-charge, over-discharge, and short circuits.
-
Temperature: Discharge range is -20°C to +60°C; Charging range is 0°C to +55°C.
-
Storage: If stored for over 6 months, the battery must be recharged to 50% SOC to maintain cell health.
-
