WALL MOUNT LIFEPO4 16.07KWH BATTERY (51.2V/314AH)

WALL MOUNT LIFEPO4 16.07KWH BATTERY (51.2V/314AH)

Name: WALL MOUNT LIFEPO4 16.07KWH BATTERY (51.2V/314AH)
SKU: 5268
Availability: InStock

UGX10,421,000.00

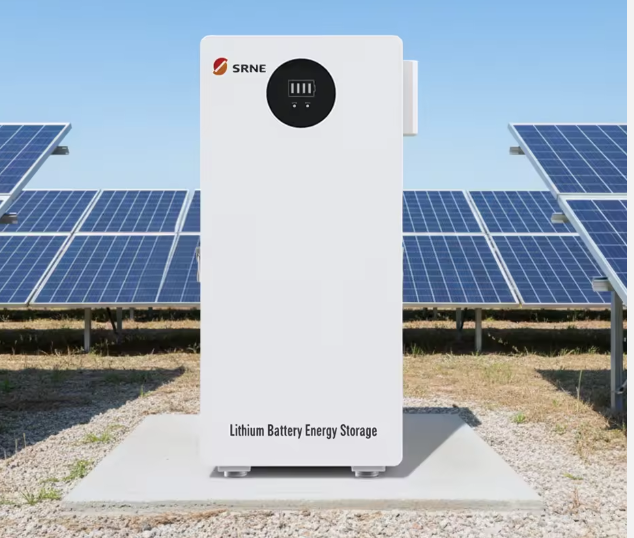

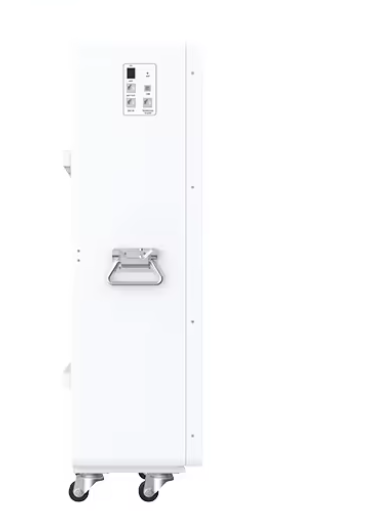

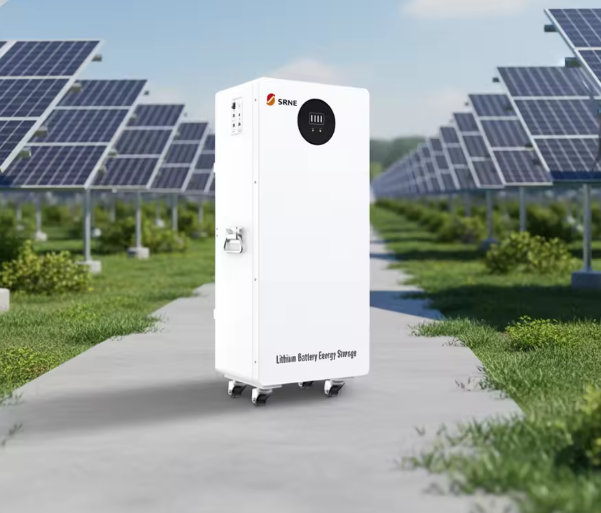

SRNE 16.07kWh Ultra-High Density Wall-Mount LiFePO4 (51.2V 314Ah)

The SR-LFP51.2-314-W is an industrial-grade energy storage solution featuring high-density 314Ah Grade-A Prismatic cells. This single module delivers a massive 16.07kWh of nominal energy, specifically engineered to support high-power 8kW to 12kW hybrid inverters in large-scale residential and commercial applications.

Detailed Technical Specifications

Parameter	Specification	Technical Significance
Model	SE16B-PRO	High-Capacity 314Ah Series
Nominal Energy	16.07kWh (16,076Wh)	Equivalent to 3x standard 5kWh units
Nominal Voltage	51.2V	Optimized for 48V/51V Power Electronics
Rated Capacity	314Ah	Ultra-high energy density footprint
Max. Charging Voltage	58.4V	Full charge threshold for LiFePO4
Max. Cont. Discharge	200A (10,240W)	Supports massive simultaneous loads
Inbuilt Protection	240A Circuit Breaker	Hardware safety & manual isolation
Max Parallel Capacity	16 Units (257.12kWh)	Massive scalability for large estates
Cycle Life	>6,000 Cycles	15–20 year design life (@ 80% DOD)
Warranty	5 Years	Guaranteed performance and reliability
Communication	CAN / RS485 / RS232	Multi-protocol Inverter Integration

Load Capability & Runtime Analysis

Calculated at 90% Depth of Discharge (approx. 14.4kWh usable energy).

Application Profile	Avg. Load	Estimated Runtime
Large Estate Essentials	800W	~18 Hours
Commercial Office	1,500W	~9.6 Hours
Heavy Climate Control	2,200W	~6.5 Hours
High-Power Workshop	4,500W	~3.2 Hours

Advanced Engineering Features

5-Year Performance Warranty: Backed by a comprehensive 5-year warranty, ensuring long-term peace of mind and protection for your energy investment.
Optimized Charging Profile: With a maximum charging voltage of 58.4V, the battery is compatible with high-voltage charging algorithms, ensuring every cell reaches full saturation for maximum runtime.
Integrated 240A Circuit Breaker: Features a dedicated high-current DC breaker for hardware-level overcurrent protection and easy manual isolation during maintenance or installation.
Massive Scalability (16 Units): Supports parallel connection of up to 16 modules, enabling a staggering total system capacity of 257.12kWh for industrial-scale storage.
Industrial 200A Smart BMS: The high-performance BMS allows for a continuous 10.2kW power draw, ensuring compatibility with high-capacity hybrid inverters without nuisance tripping.
Dual-Monitoring System: Equipped with an integrated LCD Digital Display for local status checks and built-in WiFi & Bluetooth for remote cloud monitoring via the SRNE App.

Category: Solar

Description
Reviews (0)

Description

SRNE 16.07kWh Wall-Mount LiFePO4 Battery

The SRNE 16.07kWh (51.2V 314Ah) is an industrial-grade energy storage powerhouse designed for total energy independence. Engineered with massive 314Ah Grade-A cells, this single unit provides the energy equivalent of three standard 5kWh batteries. It is the ultimate solution for large luxury homes, commercial offices, and high-demand off-grid estates.

Technical Specifications

Feature	Specification	Engineering Advantage
Model	SE16B-PRO	Max-density Wall-Mount
Total Energy	16.07kWh (16,076Wh)	Industry-leading single-unit capacity
Nominal Voltage	51.2V	Optimized for 48V/51V High-Power Inverters
Rated Capacity	314Ah	Ultra-high storage density
Max Cont. Discharge	200A (10.24kW)	Powers massive household loads easily
Peak Discharge	250A	Handles heavy motor & compressor starts
Cycle Life	>6,000 Cycles	15–20 year design life
Monitoring	WiFi / Bluetooth / LCD	Real-time smart system tracking

What It Can Run (Estimated Runtimes)

Calculated at 90% Depth of Discharge (~14.4kWh usable energy).

Load Profile	Typical Appliances	Estimated Runtime
Full Mansion Essentials	30 LED Lights, 3 Fridges, 4 TVs, Wi-Fi	24+ Hours
Large Commercial Office	10 Laptops, Server, Printer, 2 ACs, Lights	10–12 Hours
Heavy Climate Control	12,000 BTU Inverter AC (Continuous)	14.5 Hours
High-Power Workshop	Table Saw + Dust Extractor + Lighting	5–6 Hours

Why Choose the 16.07kWh Powerhouse?

Maximum Space Efficiency: Consolidate your power room. This single unit provides over 16kWh, replacing multiple smaller batteries to save wall space and reduce complex wiring.
Heavy-Duty 200A BMS: Designed to work seamlessly with large 8kW, 10kW, or 12kW inverters. It can handle high-surge appliances like borehole pumps, electric kettles, and multiple air conditioners simultaneously.
Smart Ecosystem: Features an integrated LCD Status Screen and built-in Wi-Fi/Bluetooth. Monitor your energy consumption, cell balancing, and temperature from the SRNE mobile app.
Superior Safety: Advanced Lithium Iron Phosphate (LiFePO4) chemistry ensures no risk of fire or explosion. The Smart BMS provides 24/7 protection against over-current and thermal issues.

Massive Scalability: Grow as you go. Parallel up to 16 units for a staggering 257kWh total storage capacity.

To ensure the SE16B-PRO operates at peak efficiency and maintains its 5-year warranty, your inverter must be configured with these specific lithium parameters.

Inverter Setup: SRNE 16.07kWh (314Ah) Settings Guide

Setting Parameter	Recommended Value	Technical Reason
Battery Type	Lithium / LiFePO4	Enables BMS communication (CAN/RS485)
Protocol Selection	Pylontech / SRNE	Standard handshake for SRNE batteries
Bulk/Absorption Voltage	57.6V – 58.4V	Required to reach 100% State of Charge (SOC)
Float Voltage	54.0V – 54.5V	Maintains full charge without stressing cells
Low DC Cut-off	44.0V – 47.0V	Protects cells from over-discharge damage
Max Charge Current	150A	Optimal 0.5C rate for 314Ah cells
Max Discharge Current	200A	Matches the 240A Breaker & BMS limit

Critical Installation Checklist

Communication Cable: Ensure the cable is plugged into the CAN or RS485 port of the battery and the BMS port of the inverter. If using multiple batteries, connect the inverter to the Master unit only.
Addressing (DIP Switches): For a single battery, all switches are usually OFF (0000). For parallel sets (up to 16), the Master must be assigned ID 1, and Slaves IDs 2 through 16.
DC Breaker Position: Before turning on the inverter, ensure the inbuilt 240A circuit breaker on the battery side is flipped to the ON position.
Cable Gauge: Because this battery outputs 200A, you must use a minimum of 70mm² or 95mm² copper battery cables to prevent overheating and voltage drop.

Multi-Unit Parallel Logic (Up to 16 Units)

When connecting up to 16 units, always use a Common Busbar system. Do not “daisy-chain” the main power cables from one battery to the next, as the 200A load will exceed the terminal ratings of the first battery in the chain.

Reviews

There are no reviews yet.

Be the first to review “WALL MOUNT LIFEPO4 16.07KWH BATTERY (51.2V/314AH)”
